AT36BP-3737

AT36BP-3737

Aaren Technology

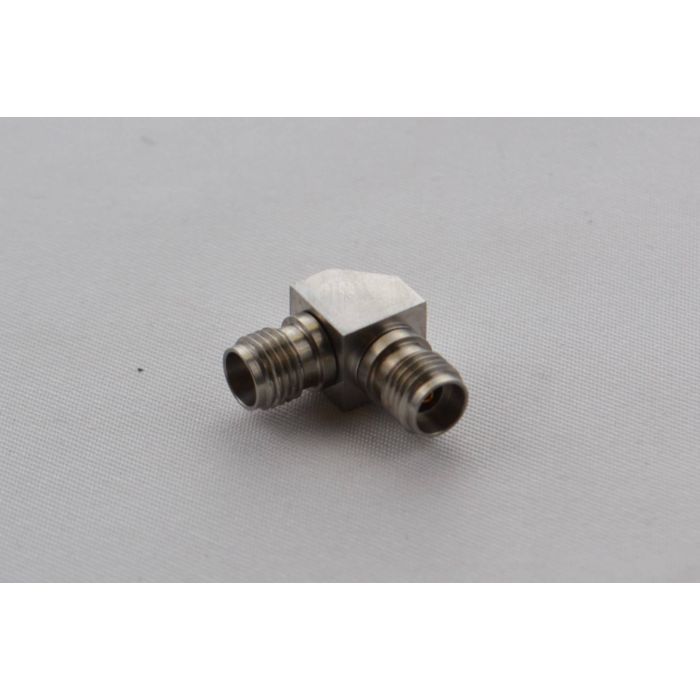

RF Precision Adapter 2.92mm Female to 2.92mm Female DC-40GHz, 50Ω

Aaren Technology Precision Adaptors

50ΩRight Angle 2.92mm Female to 2.92mm Female DC to 40GHz VSWR 1.25:1

They are designed with excellent characteristics over the full frequency range up to 40GHz.

Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].

Typical lead time: 2-5 weeks

In stock
£111.25
More Information
Attribute Value
Weight 0.005
Impedance 50Ω
Frequency DC-40GHz
VSWR Max 1.25:1
Durability 500 Cycles
Temperature Range -55˚C ~ +165˚C
Material Finishing

Housing: Stainless Steel SU303 (Polished/Passivated)
Centre Contact: Beryllium Copper, Gold Plated (MIL-G-45204)
Insulators: PEI

Interface 2.92mm Per MIL-STD-348A
More Information
Attribute Value
Data Sheet Click here to view
