AT37P-37861-B
AT37P-37861-B
Aaren Technology

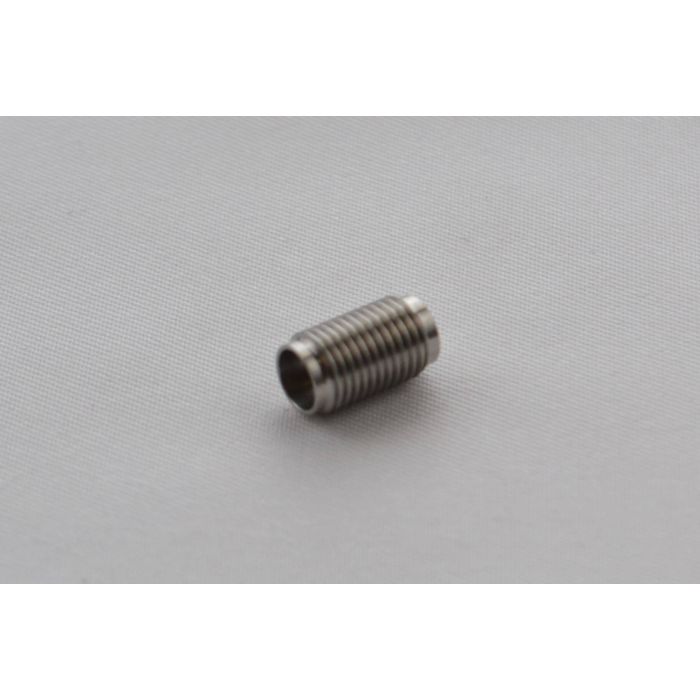

Replaceable Pin, 2.92mm F, Pin: 0.30mm/0.012"
Aaren Technology 2.92mm Connectors
50Ω precision connectors designed with excellent characteristics over the full frequency range - up to 40GHz.
2.92mm connectors are mechanically compatible with 3.5mm, SMA connectors.
Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].
Minimum Order Quantity: 10 | Typical lead time: 2-5 weeks
In stock
| Attribute | Value |
|---|---|
| Connector Family | 2.92mm Connectors (DC-40GHz) |
| Weight | 0.005 |
| Impedance | 50Ω |
| Frequency | DC-40GHz |
| VSWR Max | 1.15:1 |
| Durability | 500 Cycles |
| Temperature Range | -55˚C ~ +165˚C |
| Material Finishing |
Housing: Stainless Steel SU303 (Polished/Passivated) |
| Interface | 2.92mm Per MIL-STD-348A |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
