AT37P-41561-B-GP

AT37P-41561-B-GP

Aaren Technology

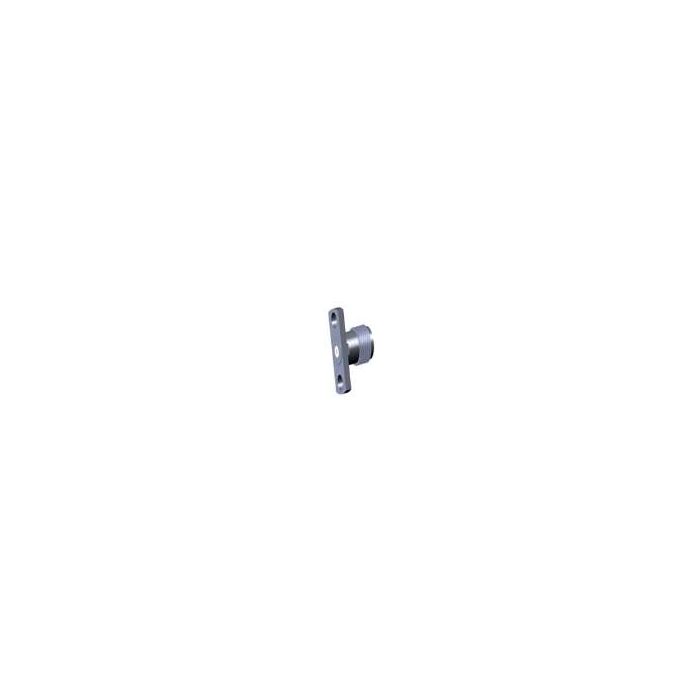

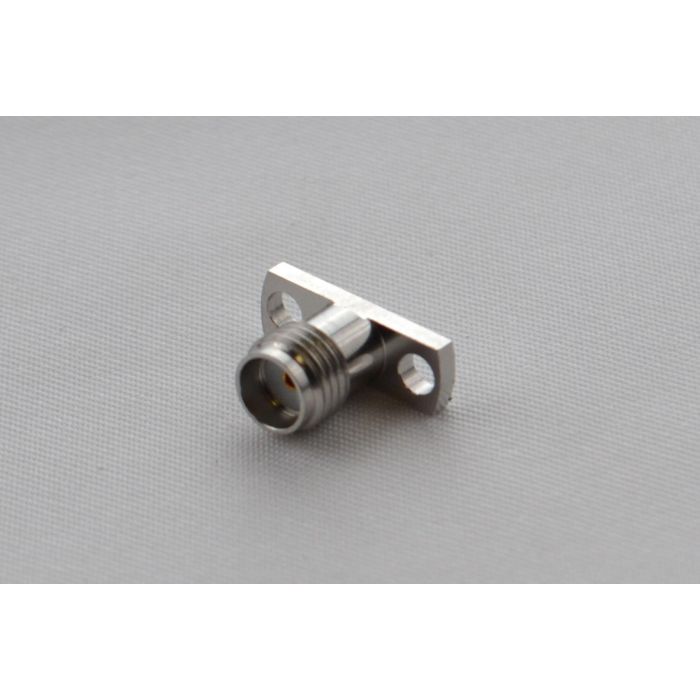

Replaceable Pin, SMA F, Pin: 0.30mm/0.012"

Aaren Technology SMA Connectors

50Ω precision connectors, designed with excellent characteristics over the full frequency range - up to 27GHz.

No external filling epoxy hole on the housing to prevent signal leakage.

Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].

Minimum Order Quantity: 25 | Typical lead time: 2-5 weeks

In stock
£10.12
More Information
Attribute Value
Connector Family SMA Connectors (DC-27GHz)
Weight 0.005
Impedance 50Ω
Frequency DC-27GHz
VSWR Max 1.15:1
Durability 500 Cycles
Temperature Range -55˚C ~ +165˚C
Material Finishing

Housing: Stainless Steel SU303 (Polished/Passivated)
Centre Contact: Beryllium Copper, Gold Plated (MIL-G-45204)
Insulators: PEI & PTFE

Interface SMA Per MIL-STD-348A
More Information
Attribute Value
Data Sheet Click here to view
