Aaren AT37PBP-41F34F03-102 | APC Technology Group

AT37PBP-41F34F03-102

AT37PBP-41F34F03-102

Aaren Technology

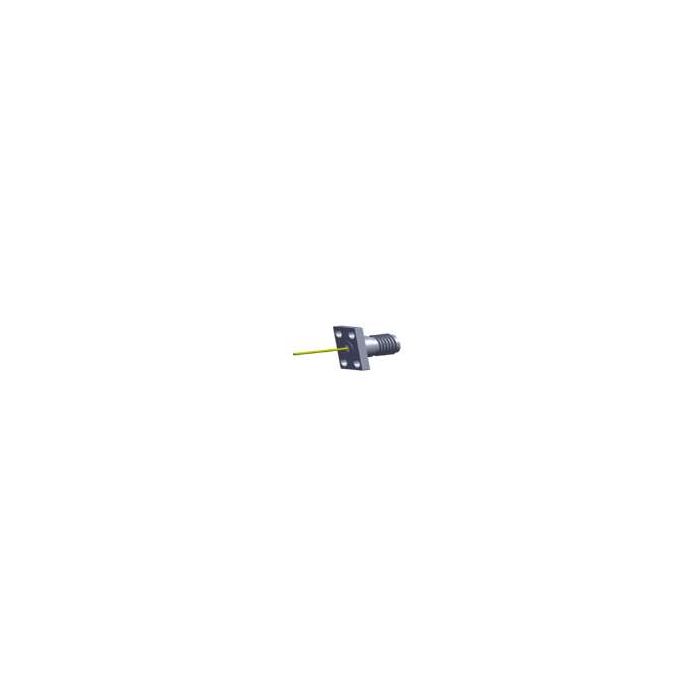

Blunt Post Contact, SMA F, 4 Hole Flange

Aaren Technology SMA Connectors are 50Ω precision connectors. They are designed with excellent characteristics over the full frequency range up to 27GHz.

No external filling epoxy hole on the housing to prevent signal leakage.

Please note: There is a minimum order quantity of 25 for this item. Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].

In stock
£10.82
More Information
Attribute Value
Connector Family SMA Connectors (DC-27GHz)
Weight 0.005
Impedance 50Ω
Frequency DC-27GHz
VSWR Max 1.15:1
Durability 500 Cycles
Temperature Range -55˚C ~ +165˚C
Material Finishing

Housing: Stainless Steel SU303 (Polished/Passivated)
Centre Contact: Beryllium Copper, Gold Plated (MIL-G-45204)
Insulators: PEI & PTFE

Interface SMA Per MIL-STD-348A
More Information
Attribute Value
Data Sheet Click here to view
