AT40A-4041-D18-30
AT40A-4041-D18-30
Aaren Technology

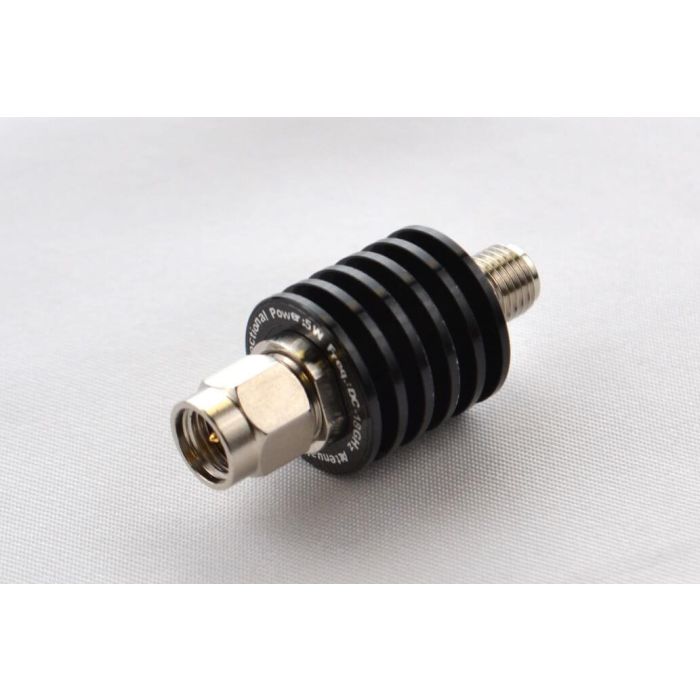

Attenuator Bi-directional SMA Male to SMA Female 5W 18GHz 30dB
Aaren Technology SMA Attenuators
50Ω Attenuator SMA Male to Female, Frequecy DC-18000MHz, Power 5W CW Attenuation 30dB
Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].
Typical lead time: 2-5 weeks
In stock
| Attribute | Value |
|---|---|
| Weight | 0.367 |
| Impedance | 50Ω |
| Frequency | DC ~18GHz |
| VSWR Max |
1.15 max @ 4GHz 1.25 max @ 12.4GHz 1.35 max @ 18GHz |
| Temperature Range | -55 to +125˚C |
| Material Finishing |
Material Connectors: Passivated Stainless Steel Material Ring & Contacts: BeCu Centre Contact: Gold Plated |
| Power Handling | 5W |
| Attenuation | 30 |
| Accuracy | +/-0.75dB |
| Direction | Bi-Directional |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
