An RF/microwave balun (or transformer) is a device that takes an input signal at a given impedance and outputs both the same signal and an inverted version of the signal at a (potentially) different output impedance.
They are suitable for applications in differential signaling, integrated circuit testing, and general lab and experimental use. The main figures of merit for a balun are the amplitude (ideally 0 dB across the band) and phase balance (ideally 0 degrees, meaning perfectly 180 degrees out of phase, across the band).

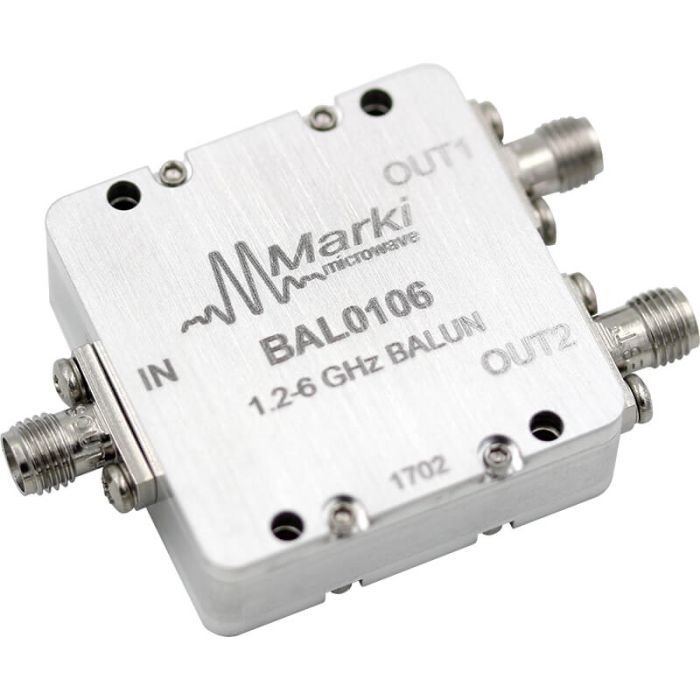

The BAL-0106 is a capacitively coupled balun. They feature excellent amplitude balance, phase balance, and common mode rejection across a multi-octave bandwidth. They can handle more power without performance degradation than magnetically coupled baluns, and with low loss.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Phase Balance Degrees | 2.0000 |
| Maximum Frequency | 6 GHz |
| Isolation (dB) | 6 |
| Minimum Frequency | 1.2 GHz |
| Product Type | Test and Measurement |
| Insertion Loss (dB) | 0.6 |
| Amplitude Balance (dB) | 0.1 |
| Common Mode Rejection (dB) | 38.0000 |
| RoHS | Y |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
