BT-0025
BT-0025
Marki Microwave

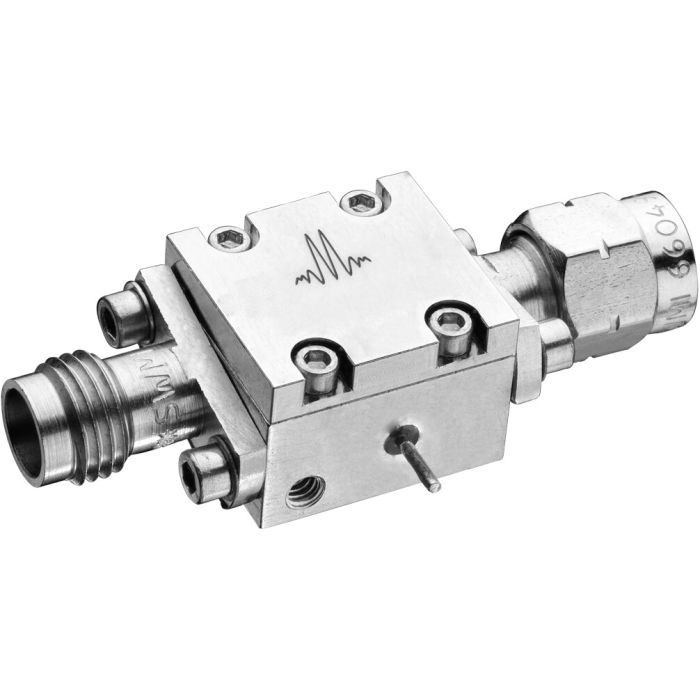

Connectorised Bias Tee (40 kHz - 25 GHz)
The BT-0025 is constructed using a custom-made, resonance-free conical inductor to achieve extremely broadband performance. By minimising the overall inductor size and using proprietary packaging techniques, the BT-0025 is a superior option in terms of performance, reliability and ease-of-use when compared to cumbersome self-made bias tees employing off-the-shelf conical inductors.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| RoHS | Y |
| Maximum Frequency | 25 GHz |
| Isolation (dB) | 35 |
| Minimum Frequency | |
| Voltage | 30 V |
| Current | 0.5 A |
| Product Type | Test and Measurement |
| Applications |
|
| Insertion Loss (dB) | 0.8 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
