BTN2-0026
BTN2-0026
Marki Microwave

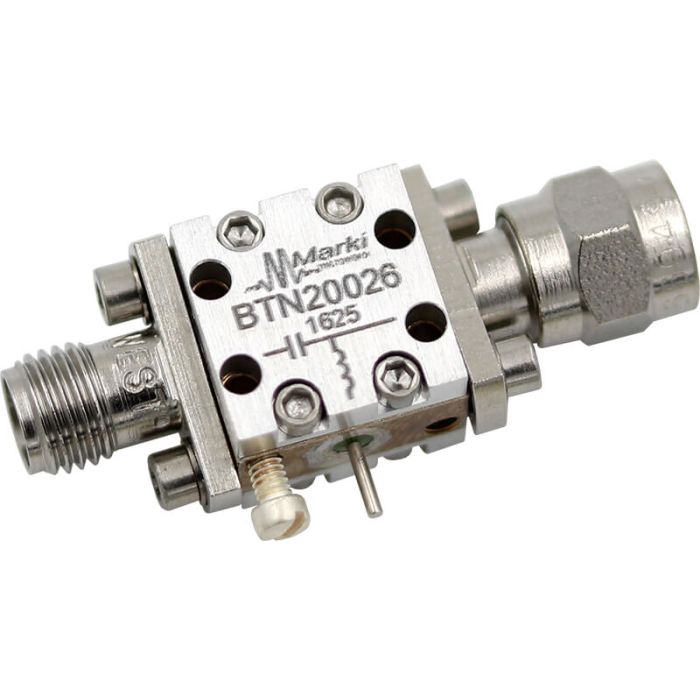

High Power Bias Tee (3 MHz - 26.5 GHz)
The BTN2-0026 is constructed using a custom-made, resonance-free conical inductor to achieve extremely broadband performance. By minimising the overall inductor size and using proprietary packaging techniques, the BTN2-0026 is a superior option in terms of performance, reliability and ease-of-use when compared to cumbersome self-made bias tees employing off-the-shelf conical inductors.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| RoHS | Y |
| Maximum Frequency | 26.5 GHz |
| Isolation (dB) | 30 |
| Minimum Frequency | 3 MHz |
| Voltage | 50 V |
| Current | 2 A |
| Product Type | Test and Measurement |
| Applications |
|
| Insertion Loss (dB) | 1.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
