BT0140-1-N

BT0140-1-N

Focus Microwaves

Bias Tee (0.1 - 40 GHz)

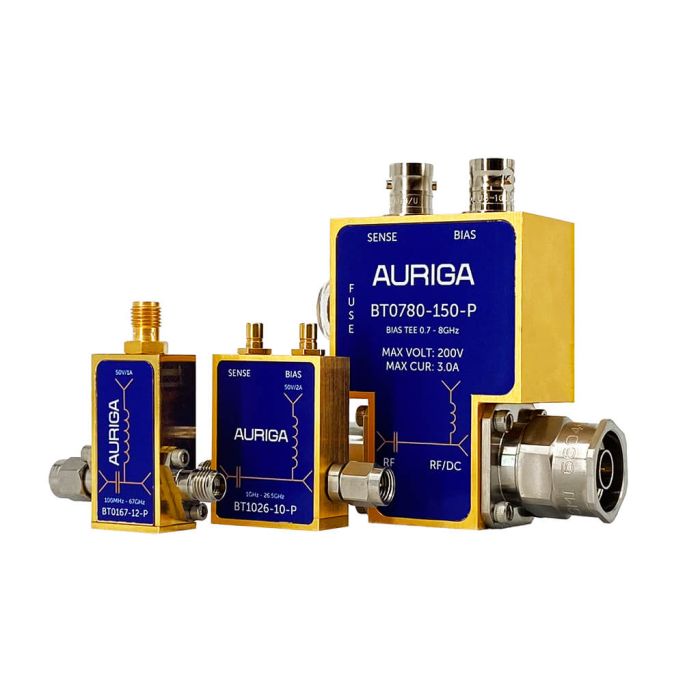

Auriga Bias Tees balance impressive RF performance with heavy-duty power handling across multiple frequency bands ranging from 100 MHz to 40 GHz. They are designed for rigorous usage without sacrificing RF performance. Only the highest-quality materials are used to minimise signal loss and enable efficient heat removal.

The highest-power bias tees include a fast-acting fuse to protect DUTs against current spikes. A DC sense port is provided for accurately measuring the incident DC voltage. Bias tees requiring external heat sinking include pre-tapped holes for easy mounting

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Minimum Frequency 0.1 GHz
Maximum Frequency 40 GHz
Insertion Loss (dB) 2.5
Maximum Current 1 A
Maximum Power 1 W
Connectors 2.92 mm
Product Type Bias Tee
More Information
Attribute Value
Data Sheet Click here to view
