BT2018-50-P
BT2018-50-P
Focus Microwaves
Bias Tee (2 - 18 GHz)

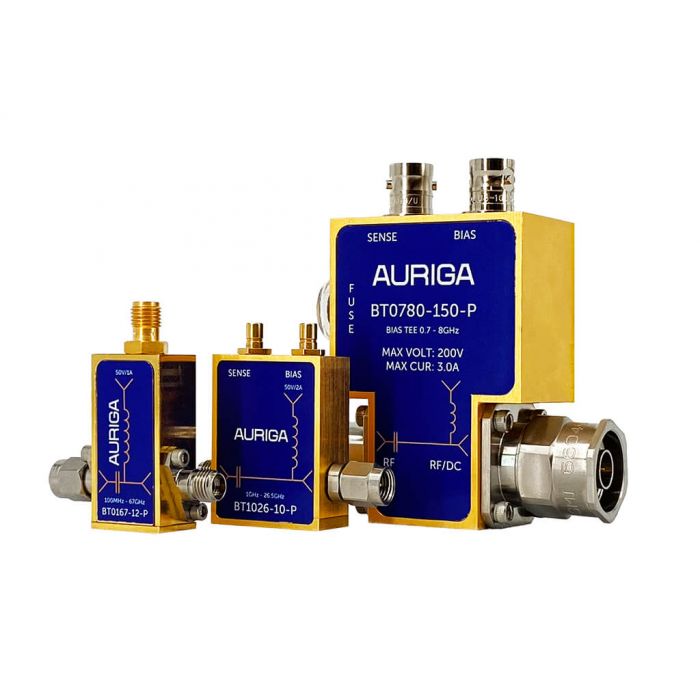

Auriga Bias Tees balance impressive RF performance with heavy-duty power handling across multiple frequency bands ranging from 100 MHz to 40 GHz. They are designed for rigorous usage without sacrificing RF performance. Only the highest-quality materials are used to minimise signal loss and enable efficient heat removal.
The highest-power bias tees include a fast-acting fuse to protect DUTs against current spikes. A DC sense port is provided for accurately measuring the incident DC voltage. Bias tees requiring external heat sinking include pre-tapped holes for easy mounting
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 2 GHz |
| Maximum Frequency | 18 GHz |
| Insertion Loss (dB) | 1.8 |
| Maximum Current | 2 A |
| Maximum Power | 50 W |
| Connectors | 2.92 mm |
| Product Type | Bias Tee |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
