Focus Microwaves

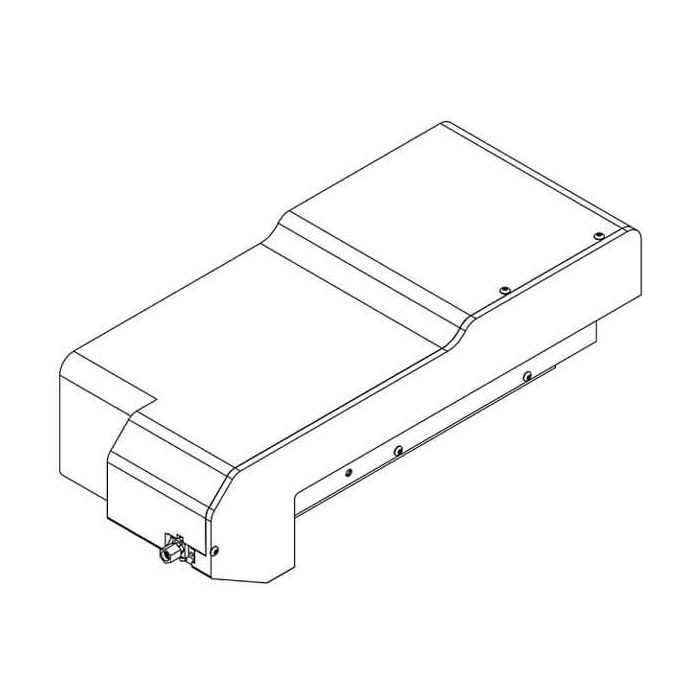

Multi-Harmonic High-Frquency DELTA Tuner (24 - 110 GHz)
DELTA TUNERS FOR HARMONIC
ON-WAFER LOAD PULL
Focus Microwaves’ new delta series of electro-mechanical tuners is designed specifically for high frequency on wafer measurements. The tuner’s low profile allows it to be placed within the wafer perimeter and allows for a direct connection between the probe tip and the tuner, eliminating all possible insertion loss between the DUT and the tuner.
This revolutionary new tuner design enables the engineer to achieve optimum tuning range, with a tuner whose footprint and weight has been dramatically reduced.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Maximum Frequency | 101 GHz to 200 GHz |
| Minimum Frequency | 24 GHz |
| Minimum Frequency | 21 GHz to 50 GHz |
| Maximum Frequency | 110 GHz |
| VSWR Max | 24.6:1 |
| Connectors | 1 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
