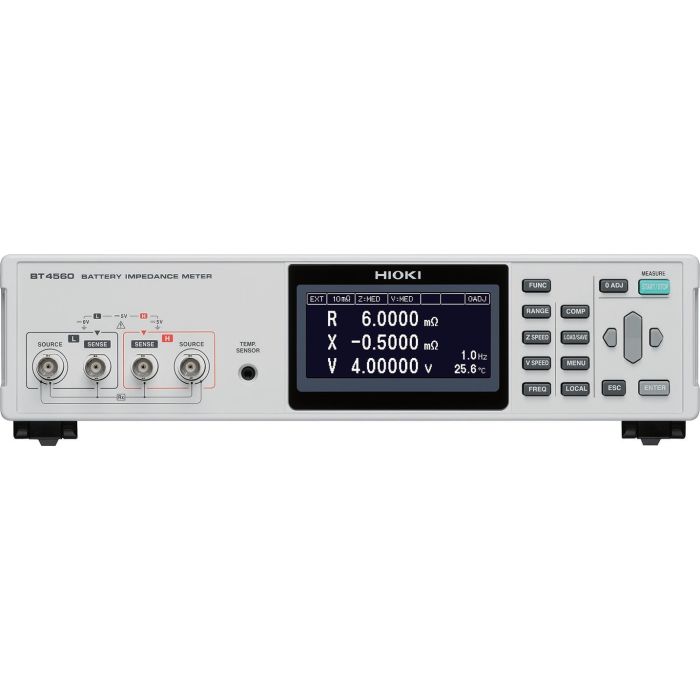

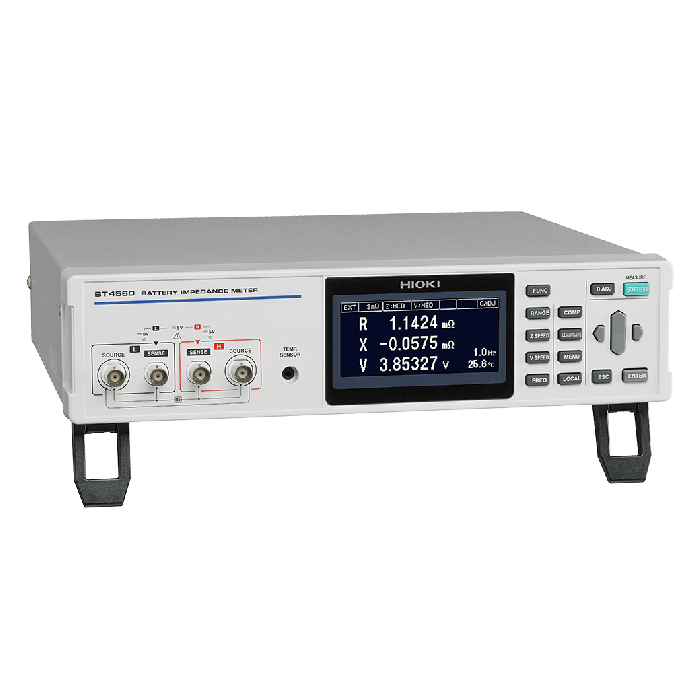

Battery Impedance Meter
This product is available in 5-7 weeks
Reliable for EIS measurement of high-capacity batteries for EVs & ESSs
The Battery Impedance Meter BT4560 can make EIS(*1) measurements quickly and easily in applications ranging from R&D to manufacturing. It delivers high-precision measurement capability for quality control of high-capacity batteries, and it can be expanded into an evaluation system for efficiently measuring multiple batteries. In addition, a new LAN interface simplifies the process of building a testing system, offering additional convenience.
*1:Electrochemical Impedance Spectroscopy (EIS) is a type of testing that measures a battery's impedance across a broad frequency range using small AC signals. The technique, which yields detailed insights into characteristics such as a battery’s internal resistance and electrode reactions, aids in the understanding of battery behaviour and performance, making it useful in R&D and quality control applications.
Key Features
- EIS measurement frequency: 0.01 Hz to 1.05 kHz
- Simultaneous measurement of impedance, voltage, & temperature
- Convenient evaluation application software for R&D use
- Data compatibility with third-party equivalent circuit analysis software
- For production lines: LAN interface & advanced multi-channel solutions
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Power Supply |
Rated supply voltage: 100 V to 240 V AC |
| Included Accessories | Power cord × 1, instruction manual × 1, zero-adjustment board × 1, USB cable (A-B type) × 1, CD-R (comes with communication instruction manual, PC application software, and USB driver) × 1 |
| Interfaces | LAN, RS-232C, USB, EXT. I/O (NPN/PNP can be switched) |
| Measurement Items | Impedance, voltage, temperature |
| Measurement Range | 5.00000 V (single range), measurement time: 0.1 s (FAST) to 1.0 s (SLOW) |
| Accuracy | Z: ±0.4% rdg. θ: ±0.1°, V: ±0.0035% rdg. ±5 dgt., Temperature: ±0.5°C (at 10.0°C to 40.0°C) |
| Functionailty | Comparator, self-calibration, sample delay, average, voltage limit, potential gradient compensation for impedance measurement, charge/discharge prevention during AC signal application, key lock, system test, panel saving and loading (up to 126 condition sets) |
| Temperature Measurement Accuracy | Range: -10.0°C to 60.0°C, measurement time: 2.3 s |
