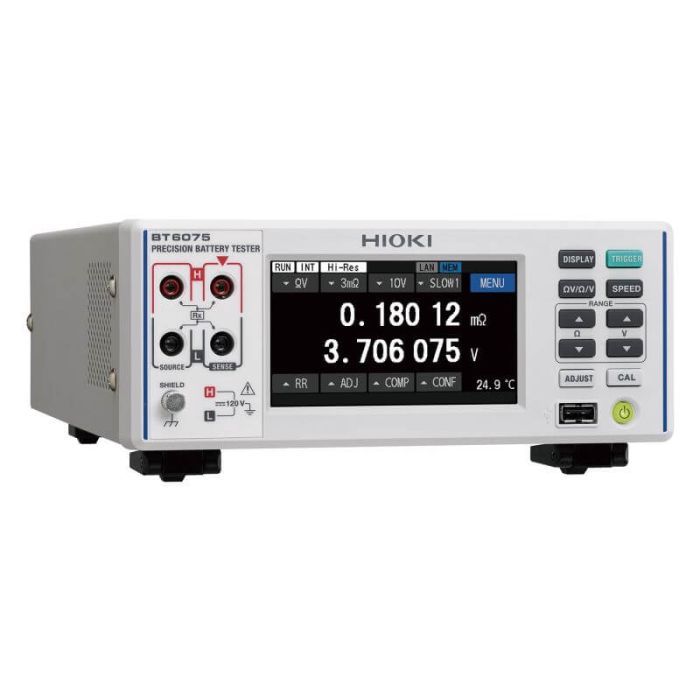

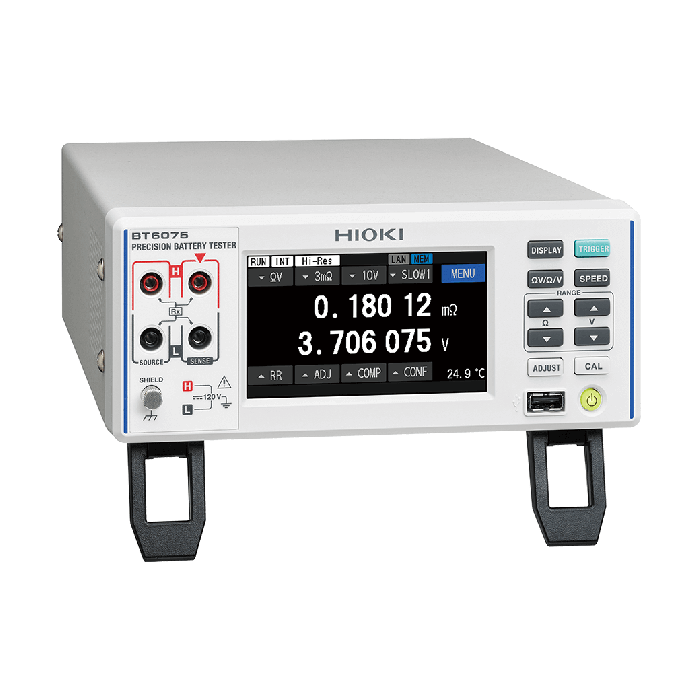

Hioki BT6075 Precision Battery Tester

BT6075

Hioki

Precision Battery Tester - High-precision cell grading, Max. AC-IR resolution: 0.01 μΩ, Max. DCV resolution: 1 μV

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This product is available in 5-7 weeks

Precision OCV/IR testing for Next-gen High-capacity Batteries.

Key Features:

Industry's most accurate and high speed OCV/IR test performance
Beginning- and end-of-line (BOL, EOL) test
For high-precision cell grading
Shorter testing times while maintaining exceptional reproducibility
Two testers work in tandem without interference
Channel-specific correction and optional multiplexer
Supports seamless setup of inspection systems
High durability and long-term stable test system operations

The Precision Battery Tester BT6075 is designed for OCV/AC-IR testing of high-capacity EV battery cells with low internal resistance. The extremely high resolution enables these models to perform advance cell-grading. These testers powerfully facilitate the creation of reliable and efficient OCV/IR testing systems with their innovative features and capability of high-speed testing.

Specifications

More Information
Attribute	Value
Power Supply	Rated supply voltage: 100 V to 240 V AC Rated power-supply frequency: 50 Hz, 60 Hz Maximum rated power: 40 VA
Included Accessories	Power cord × 1, Startup Guide × 1, Operating Precautions × 1

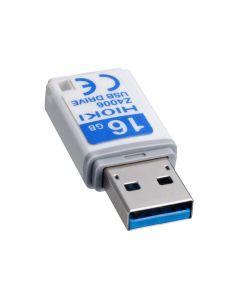

Interfaces	LAN (10BASE T/100BASE-T, TCP/IP), USB (COM mode, Connector Type-C), USB (MEM mode, Connector Type-A, the Z4006 USB Drive is used), RS-232C (9600 bps, 19200 bps, 38400 bps), EXT. I/O
Response Time	Approx. 8 ms (when measuring only resistance and voltage of a 4 V battery)
Functionailty	Averaging (up to 256 times), contact check, resistance self-calibration, DC voltage self-calibration, zero adjustment (528 channels), referential adjustment (528 channels), route resistance monitor, resistance measurement MIR mode, comparator, command compatibility (BT3562A Battery HiTester compatible), panel save (number of saveable sets: 6), command monitor, EXT. I/O test
Resistance Measurement Ranges	[Range (Measurement current), Accuracy (SLOW2), Maximum display value, Resolution] 3 mΩ (300 mA), ±0.08% rdg. ±0.08 μΩ, 5.10000 mΩ, 0.01 μΩ 3 mΩ (100 mA), ±0.08% rdg. ±0.50 μΩ, 5.10000 mΩ, 0.01 μΩ 30 mΩ (100 mA), ±0.08% rdg. ±0.5 μΩ, 51.0000 mΩ, 0.1 μΩ 300 mΩ (10 mA), ±0.08% rdg. ±5 μΩ, 510.000 mΩ, 1 μΩ 3 Ω (1 mA), ±0.10% rdg. ±50 μΩ, 5.10000 Ω, 10 μΩ 30 Ω (100 μA), ±0.15% rdg. ±0.5 mΩ, 51.0000 Ω, 100 μΩ Measurement-current frequency: 1 kHz ±0.2 Hz Additional accuracy deterioration Temperature coefficient: add the following value to the measurement accuracy if the temperature is 0°C to 18°C or 28°C to 40°C: (measurement accuracy × 0.1) / °C Addition when resistance measurement MIR mode is enabled: add ±0.01% rdg. to the resistance measurement accuracy.
Temperature Measurement Accuracy	Range: -10.0°C to 60.0°C (14°F to 140°F) Accuracy (instrument + Z2005): ±0.5°C (measurement temperature of 10.0°C to 40.0°C) ±1.0°C (measurement temperature of -10.0°C to 9.9°C, 40.1°C to 60.0°C)
Resistance Range	[Resistance range, Measurement current, Maximum display value] 3 mΩ, 300 mA, 10.0 Ω 3 mΩ, 100 mA, 50.0 Ω 30 mΩ, 100 mA, 50.0 Ω 300 mΩ, 10 mA, 50.0 Ω 3 Ω, 1 mA, 50.0 Ω 30 Ω, 100 μA, 500 Ω
