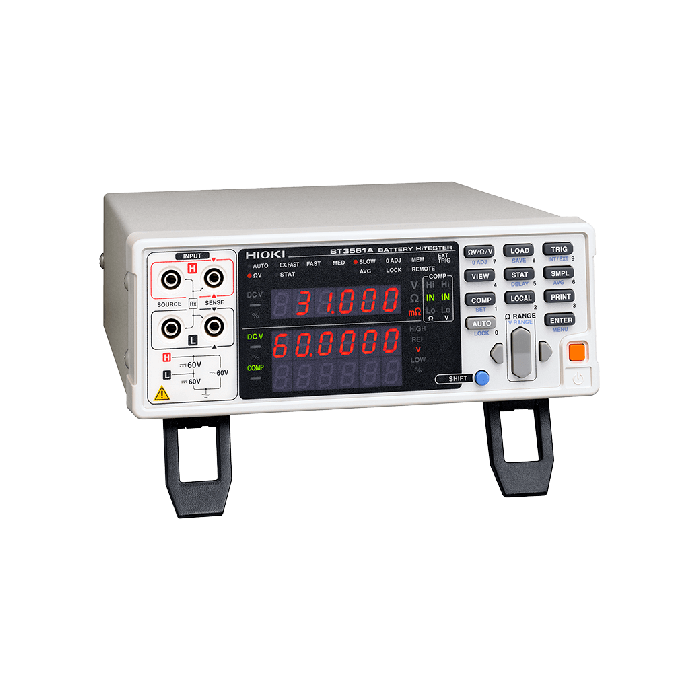

Battery Hitester BT3561A - Fully automated production line testing of small cells for power motors or small packs of up to 60 V

main product photo
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Simultaneous measurement of internal resistance and open circuit voltage.
  • Fully automated production line testing of small cells for power motors or small packs of up to 60 V.
  • Resistance measurement ranges: 30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ
  • Voltage measurement ranges: 6 V/60 V
  • Equipped with LAN
Basic Specifications
Resistance measurement ranges 30 mΩ（Max. display: 31.000 mΩ, resolution: 1 μΩ, measurement current: 100 mA）
300 mΩ（Max. display: 310.00 mΩ, resolution: 10 μΩ, measurement current: 10 mA）
3 Ω（Max. display: 3.1000 Ω, resolution: 100 μΩ, measurement current: 1 mA）
30 Ω（Max. display: 31.000 Ω, resolution: 1 mΩ, measurement current: 100 μA）
300 Ω（Max. display: 310.00 Ω, resolution: 10 mΩ, measurement current: 10 μA）
3 kΩ（Max. display: 3.1000 kΩ, resolution: 100 mΩ, measurement current: 10 μA）

Basic accuracy: ±0.5% rdg ±5 dgt（30 mΩ range or more）
Measurement frequency: 1 kHz ±0.2 Hz
Measurement method: AC four-terminal method
Voltage measurement ranges 6 V（Max. display: 6.00000 V, resolution: 10 μV）
60 V（Max. display: 60.0000 V, resolution: 100 μV）

Basic accuracy: ±0.01% rdg. ±3 dgt.
Response time 10 ms
Sampling period Ω or V (60 Hz): 4 ms (EX.FAST), 12 ms (FAST), 35 ms (MEDIUM), 150 ms (SLOW)
ΩV (60 Hz): 8 ms (EX.FAST), 24 ms (FAST), 70 ms (MEDIUM), 253 ms (SLOW)

Ω or V (50 Hz): 4 ms (EX.FAST), 12 ms (FAST), 42 ms (MEDIUM), 157 ms (SLOW)
ΩV (50 Hz): 8 ms (EX.FAST), 24 ms (FAST), 84 ms (MEDIUM), 259 ms (SLOW)
Functions Contact check, Zero adjustment (±1000 counts), Pulse measurement, Comparator (Hi/ IN/ Lo), Statistical calculations (Max. 30,000), Delay, Average, Panel saving/loading, Memory storage, LabVIEW® driver
Interfaces LAN (TCP/IP, 10BASE-T/100BASE-TX)
RS-232C (Max. 38.4 kbps, Available as printer I/F)
EXT I/O (37-pin Handler interface)
Analog output (DC 0 V to 3.1 V)
Power supply 100 to 240 V AC, 50 Hz/60 Hz, 35 VA max.
Dimensions and mass 215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz)
Instrument Type Battery Tester
Notes Measurement leads are not included. Purchase the appropriate lead option for your application separately. The male (system side) of the EXT I/O connector is also available. Please contact APC Technology Group.
