DM7276-02
DM7276-02
Hioki

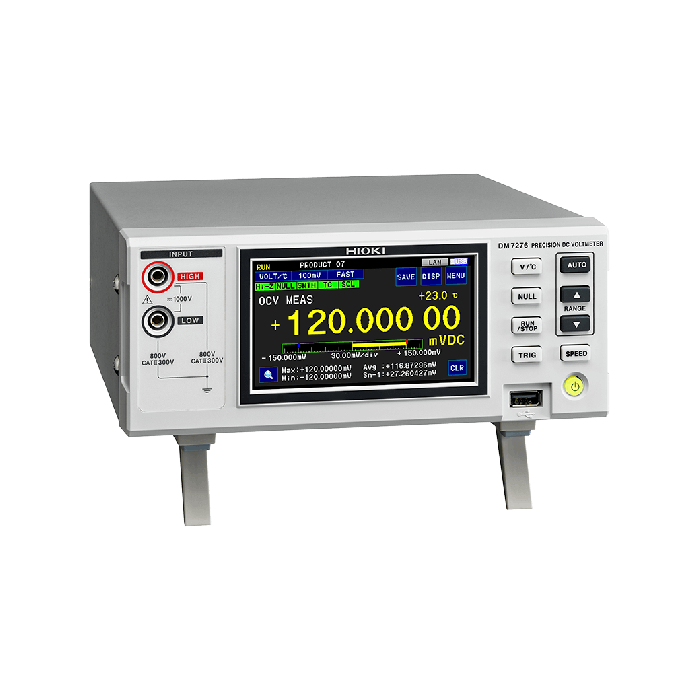

Precision DC Voltmeter - Built-in GP-IB
This product is available in 5-7 weeks
7-1/2 Digit, 9 ppm High Precision DC Voltmeter for Lithium-ion Batteries
The DM7276 Precision DC Voltmeter delivers superior measurement accuracy of 9 ppm (0.0009%), an accuracy level that is demanded by advanced applications such as aging tests of lithium-ion batteries. Other key features include contact check to maximize measurement reliability, binning and temperature compensation, making the voltmeter ideal for developing and manufacturing Li-ion batteries, electrical double-layer capacitors, electric vehicle components, and other next generation devices.
Key Features
- High-accuracy model with 1-year 9 ppm Accuracy
- Capacitance contact check (using built-in C-monitor)
- Supports global production with built-in variable power supply
- Built-in EXT I/O, LAN, and USB
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Power Supply | 100 to 240 V AC, 50/60 Hz, 30 VA |
| Included Accessories | Instruction manual ×1, power cord ×1, application disk (CD-R) ×1 |
| Interfaces |
Standard: LAN (100BASE-TX), EXT. I/O, USB flash drive / USB device (USB2.0 Full-Speed), GP-IB |
| Accuracy | 10 V range: ±0.0009% rdg. ±12 μV |
| Voltage Measurement Ranges |
DC voltage: 100 mV ( ±120.000 00 mV) to 1000 V ( ±1000.000 0 V ), 5 ranges |
| Intergration Time | Integration time unit: PLC/ms (PLC setting: 0.02/ 0.2/ 1/ 10/ 100, ms setting: 1 ms to 9999 ms) |
| Contact Check | Check signal: 10 mV rms, threshold value: 0.5 nF to 50 nF (Cannot use in the 100 V/1000 V ranges), Contact check integration time: 1 ms to 100 ms |
