RM3544-01
RM3544-01
Hioki
Ohmmeter, 4-Wire, 30mohm to 3Mohm, 1 µohm, 300 mA, ± 0.02% rdg, 80 mm

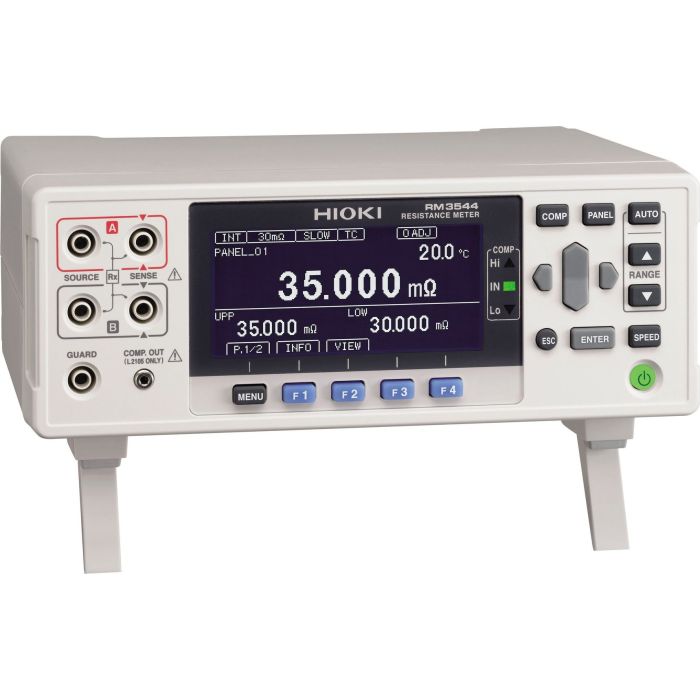

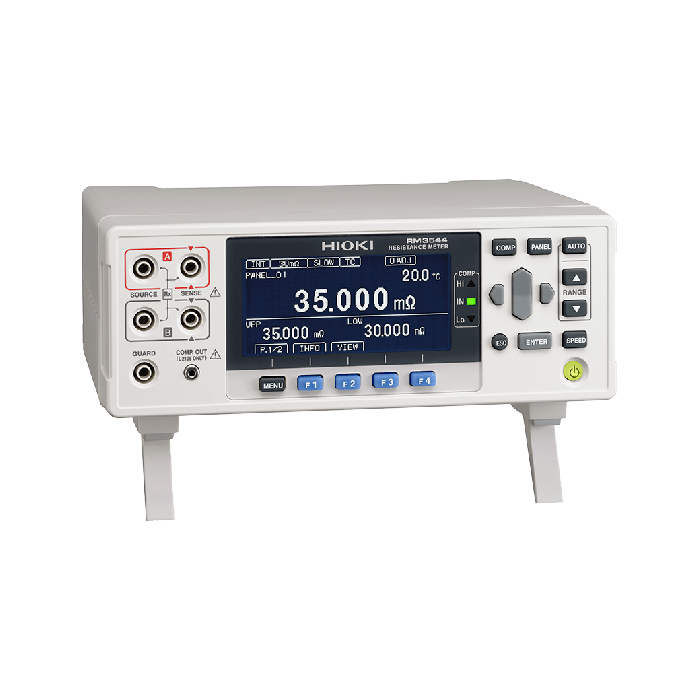

RM3544-01 is easy-to-use resistance tester suitable for use on either manual or automated production lines. The RM3544 is capable of performing high-speed, high-precision measurement of the winding resistance of components such as motors and transformers, the contact resistance of relays and switches, the pattern resistance of printed circuit boards, and the DC resistance of fuses, resistors, and materials such as conductive rubber using four-terminal measurement.
Since the instrument incorporates a temperature correction function, it is particularly well suited to the measurement of targets whose resistance values vary with temperature.
HIOKI RM3544-01 Resistance Meter Highlights:
- Measurement range from 30mohm to 3.0000Mohm with a basic accuracy of 0.02%rdg
- Maximum measurement current of 300mA
- No need for warm-up operation or zero-adjustment
- Temperature correction for high-speed testing
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Absolute Accuracy | 0.02% rdg |
| Dimensions | 215mm W x 80mm H x 166mm D |
| Interface | USB, RS-232C, EXT I/O interface |
| Resolution | 1µohm |
