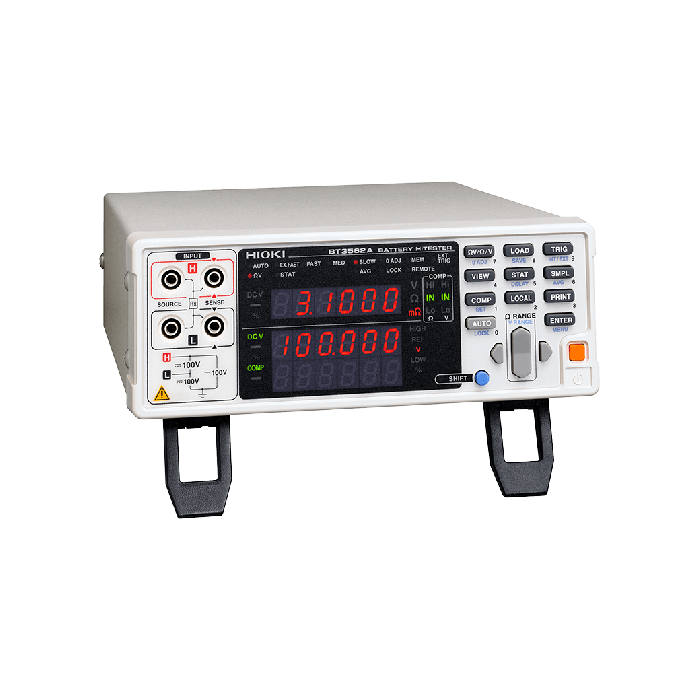

BT3562A
BT3562A
Hioki
Battery HiTester
This product is available in 5-7 weeks
Fully Automated Production Line Testing of Large Cells for xEVs or Mid-sized Packs of up to 100 V
Key Features
- Simultaneous measurement of internal resistance and open circuit voltage.
- Fully automated production line testing of large cells for xEVs or mid-sized packs of up to 100 V.
- Measure from 0 Ω to 3.1 kΩ (minimum resolution 0.1 μΩ)
- Resistance measurement ranges: 3 mΩ/30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ
- Measure from 0 V DC to ±100 V DC (minimum resolution 10 μV)
- Voltage measurement ranges: 6 V/60 V/100 V
- Equipped with LAN
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£2,755.25
| Attribute | Value |
|---|---|
| Power Supply | 100 to 240 V AC, 50 Hz/60 Hz, 35 VA max. |
| Dimensions and Weight | 6 V (Max. display: 6.00000 V, resolution: 10 μV) 60 V (Max. display: 60.0000 V, resolution: 100 μV) 100 V (Max. display: 100.000 V, resolution: 1 mV) Accuracy: ±0.01% rdg. ±3 dgt. |
| Interfaces | LAN (TCP/IP, 10BASE-T/100BASE-TX) RS-232C (Max. 38.4 kbps, Available as printer I/F) EXT I/O (37-pin Handler interface) Analog output (DC 0 V to 3.1 V) |
| Sampling Rate | Ω or V (60 Hz): 4 ms (EX.FAST), 12 ms (FAST), 35 ms (MEDIUM), 150 ms (SLOW) ΩV (60 Hz): 8 ms (EX.FAST), 24 ms (FAST), 70 ms (MEDIUM), 253 ms (SLOW) Ω or V (50 Hz): 4 ms (EX.FAST), 12 ms (FAST), 42 ms (MEDIUM), 157 ms (SLOW) ΩV (50 Hz): 8 ms (EX.FAST), 24 ms (FAST), 84 ms (MEDIUM), 259 ms (SLOW) |
| Resistance Measurement Ranges | 3 mΩ (Max. display: 3.1000 mΩ, resolution: 0.1 μΩ, measurement current: 100 mA) 30 mΩ (Max. display: 31.000 mΩ, resolution: 1 μΩ, measurement current: 100 mA) 300 mΩ (Max. display: 310.00 mΩ, resolution: 10 μΩ, measurement current: 10 mA) 3 Ω (Max. display: 3.1000 Ω, resolution: 100 μΩ, measurement current: 1 mA) 30 Ω (Max. display: 31.000 Ω, resolution: 1 mΩ, measurement current: 100 μA) 300 Ω (Max. display: 310.00 Ω, resolution: 10 mΩ, measurement current: 10 μA) 3 kΩ (Max. display: 3.1000 kΩ, resolution: 100 mΩ, measurement current: 10 μA) Accuracy: ±0.5% rdg ±10 dgt (3 mΩ range), ±0.5% rdg ±5 dgt (30 mΩ range or more) Measurement frequency: 1 kHz ±0.2 Hz Measurement method: AC four-terminal method |
| Voltage Measurement Ranges | 6 V (Max. display: 6.00000 V, resolution: 10 μV) 60 V (Max. display: 60.0000 V, resolution: 100 μV) 100 V (Max. display: 100.000 V, resolution: 1 mV) Accuracy: ±0.01% rdg. ±3 dgt. |
| Measurement Time | Response time: 10 ms |
