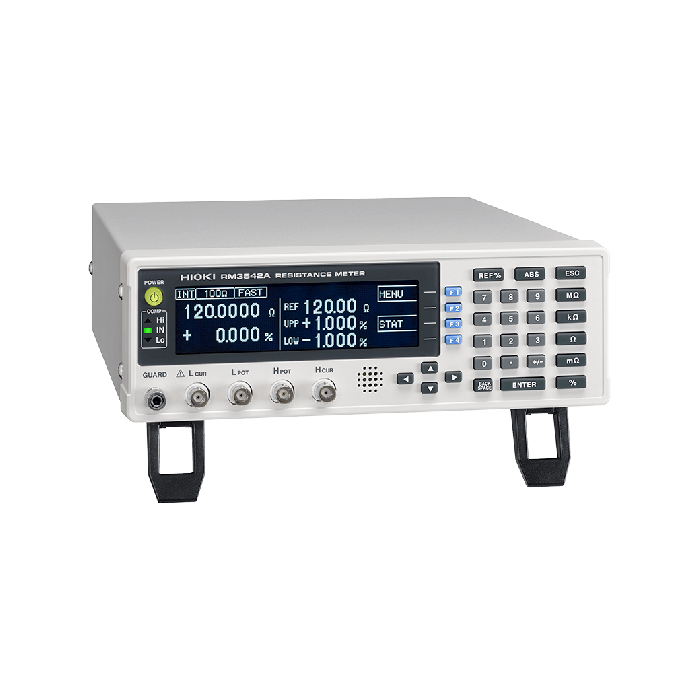

RM3542A
RM3542A
Hioki
Resistance Meter
High-Speed Resistance Meter Ideal for Automated Lines; Compatible with Super-Small Electronic Components
Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3542A delivers high-speed and high-stability measurements and improved productivity by minimizing variations and reducing contact errors. In addition, the low-impact measurement technology lets you measure resistance for miniature 008004-size electronic parts.
Key Features
- Applied voltage limit function lets you switch the detection voltage to 5 V or less
- Contact improvement function suppresses rush current to aid in probing of super-small components
- Extensive selection of measurement ranges ensures the right detection voltage and delivers stable measurement
- Scaling function corrects for mounting state and test stage differences
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | 100 to 240 V AC, 50/60 Hz, 30 VA max. |
| Included Accessories | Power cord ×1, EXT. I/O male connector ×1, Instruction manual ×1, Operation guide ×1 |
| Display | Monochrome graphic LCD 240 × 64 dot, white LED backlight |
| Interfaces | RS-232C, Printer, GP-IB (Model RM3542-51) |
| Accuracy |
[with SLOW mode, at 100 mΩ range] ±0.015 % rdg. ±0.002 % f.s. [with SLOW mode, at 1000 Ω range] ±0.006 % rdg. ±0.001 % f.s. (best case) |
| Measurement Times |
[at 100 Ω /1000 Ω ranges, with Low Power OFF] FAST: 0.9 ms, MED: 3.6 ms, SLOW: 17 ms (minimum time) |
| Resistance Measurement Ranges |
[at Low Power OFF] 100 mΩ range (Max. 120.0000 mΩ, 0.1 μΩ resolution) to 100 MΩ range (Max. 120.0000 MΩ, 100 Ω resolution), 16 steps [at Low Power ON] 1000 mΩ range (Max. 1200.000 mΩ, 1 μΩ resolution) to 1000 Ω range (Max. 1200.000 Ω, 1 mΩ resolution), 6 steps |
| Testing Current | [at 100 mΩ range] 100 mA DC to [at 100 MΩ range] 100 nA DC |
| Open-Terminal Voltage | 20 V DC max. (with applied voltage limit function enabled: max. 10 V DC) |
| Attribute | Value |
|---|---|
