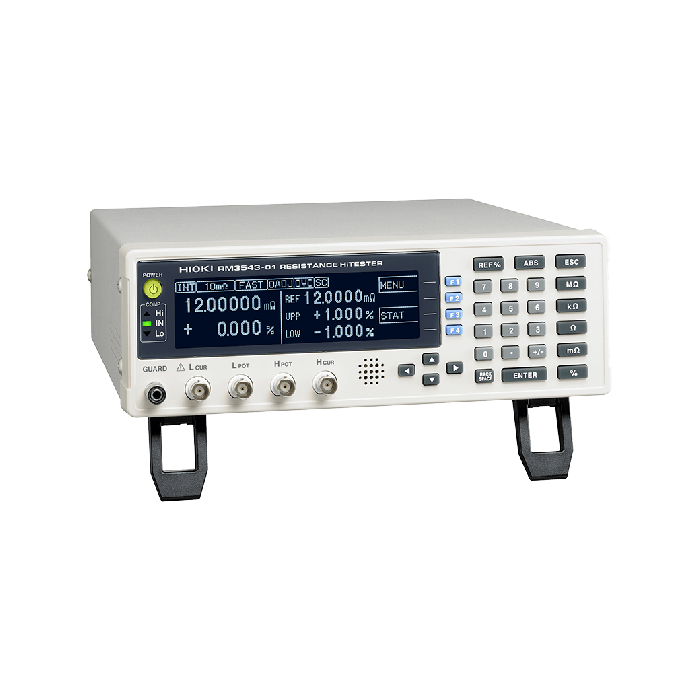

RM3543-01
RM3543-01
Hioki
Resistance HiTester - Built in GP-IB interface
This product is available in 5-7 weeks
Resistance Meter for Ultra-low and Low Shunt Resistance
Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3543 is designed to be integrated into current sensing resistor taping machines, deliver high-accuracy measurement of super-low-resistance levels, and are advanced enough to measure 0.1 mΩ shunts with room to spare.
Key Features
- Advanced enough to measure 0.1 mΩ shunts with room to spare at ±0.16% accuracy & 0.01μΩ resolution performance
- Superb repeatable measurement accuracy
- Advanced contact-check, comparator, and data export functions
- Intuitive user interface and strong noise immunity are ideal for automated systems
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£3,390.78
| Attribute | Value |
|---|---|
| Power Supply | 101 to 240 V AC, 50/60 Hz, 40 VA max. |
| Included Accessories | Power cord ×1, EXT. I/O male connector ×1, Instruction manual ×1, Operation guide ×2 |
| Display | Monochrome graphic LCD 240 × 64 dot, white LED backlight |
| Interfaces | External I/O, RS-232C, Printer, GP-IB (Model RM3543-01) External I/O: Trigger, Hold input, Comparator output, Settings monitor terminal, Service power output +5V, +12V, etc. |
| Measurement Range | Four-terminal, constant-current DC |
| Accuracy | [at 10 mΩ range, with SLOW mode, average 16 times settings] ±0.060 % rdg. ±0.001 % f.s. |
| Sampling Rate | FAST, MEDIUM, SLOW, 3 settings |
| Resistance Measurement Ranges | 11 mΩ (Max. 12.00000 mΩ, 0.01 μΩ resolution) to 1000 Ω range (Max. 1200.000 Ω, 1 mΩ resolution), 7 steps |
| Intergration Time | [at 10 mΩ range, default value] FAST 2.0 ms, MED 5.0 ms, SLOW 1 PLC, Setting range: 0.1 ms to 100.0 ms, or 1 to 5 PLC at 50 Hz, 1 to 6 PLC at 60 Hz Note: PLC = one power line cycle (mains waveform period) |
| Testing Current | [at 10 mΩ range] 1 A DC to [at 1000 Ω range] 1 mA DC |
| Open-Terminal Voltage | 21 V DC max. Note: Voltage when not measuring is 20 mV or less, with current mode set at PULSE and Contact Improver Setting set at OFF/PULSE (measured with a voltmeter having 10 MΩ) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
