DM7276
DM7276
Hioki

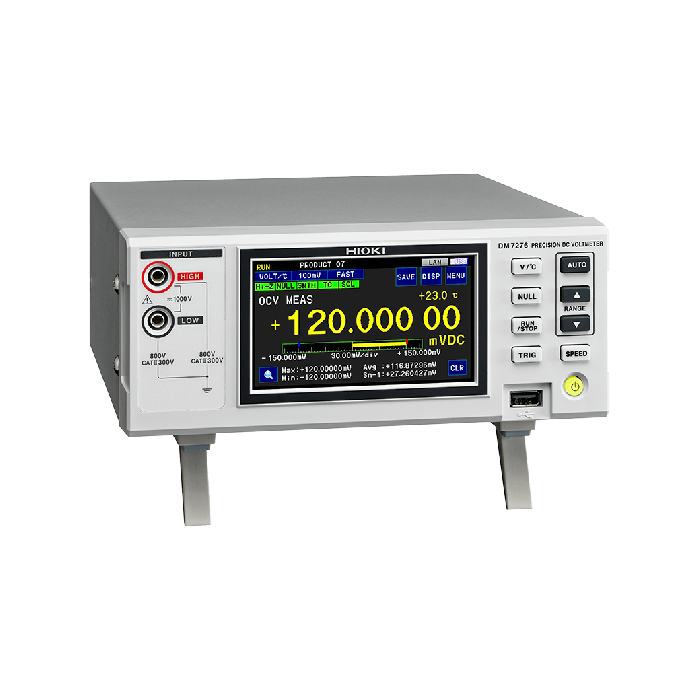

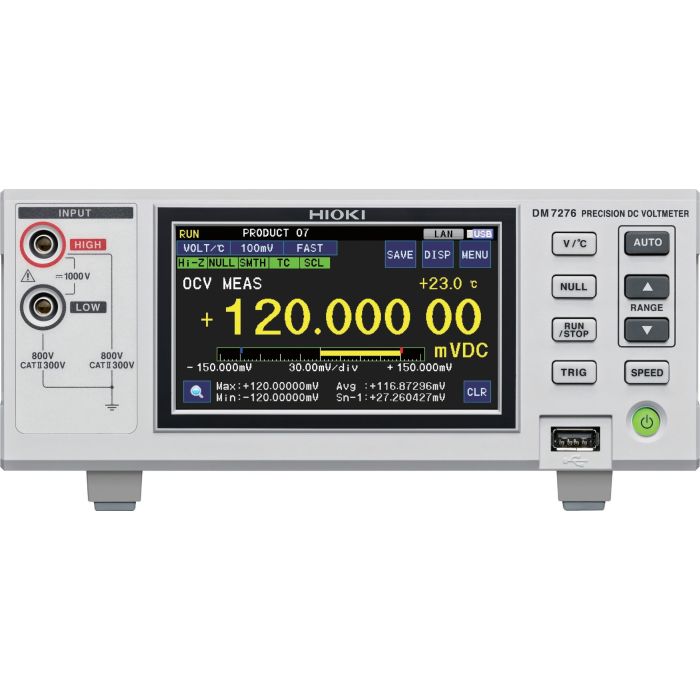

Precision DC Voltmeter - For Lithium-Ion Batteries
7-1/2 Digit, 9 ppm High Precision DC Voltmeter for Lithium-ion Batteries
The DM7276 Precision DC Voltmeter delivers superior measurement accuracy of 9 ppm (0.0009%), an accuracy level that is demanded by advanced applications such as aging tests of lithium-ion batteries. Other key features include contact check to maximize measurement reliability, binning and temperature compensation, making the voltmeter ideal for developing and manufacturing Li-ion batteries, electrical double-layer capacitors, electric vehicle components, and other next generation devices.
Key Features
- High-accuracy model with 1-year 9 ppm Accuracy
- Capacitance contact check (using built-in C-monitor)
- Supports global production with built-in variable power supply
- Built-in EXT I/O, LAN, and USB
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | 100 to 240 V AC, 50/60 Hz, 30 VA |
| Included Accessories | Instruction manual ×1, power cord ×1, application disk (CD-R) ×1 |
| Interfaces |
Standard: LAN (100BASE-TX), EXT. I/O, USB flash drive / USB device (USB2.0 Full-Speed) Optional: GP-IB (-02 type only) / RS-232C (-03 type only) / PRINTER (-03 type only) |
| Accuracy | 10 V range: ±0.0009% rdg. ±12 μV |
| Voltage Measurement Ranges |
DC voltage: 100 mV ( ±120.000 00 mV) to 1000 V ( ±1000.000 0 V ), 5 ranges |
| Intergration Time | Integration time unit: PLC/ms (PLC setting: 0.02/ 0.2/ 1/ 10/ 100, ms setting: 1 ms to 9999 ms) |
| Contact Check | Check signal: 10 mV rms, threshold value: 0.5 nF to 50 nF (Cannot use in the 100 V/1000 V ranges), Contact check integration time: 1 ms to 100 ms |
