RM3544
RM3544
Hioki
Resistance Meter
Wide Range 30 mΩ to 3 MΩ DC Resistance Meters with Temperature Correction for High Speed Testing on Production Lines

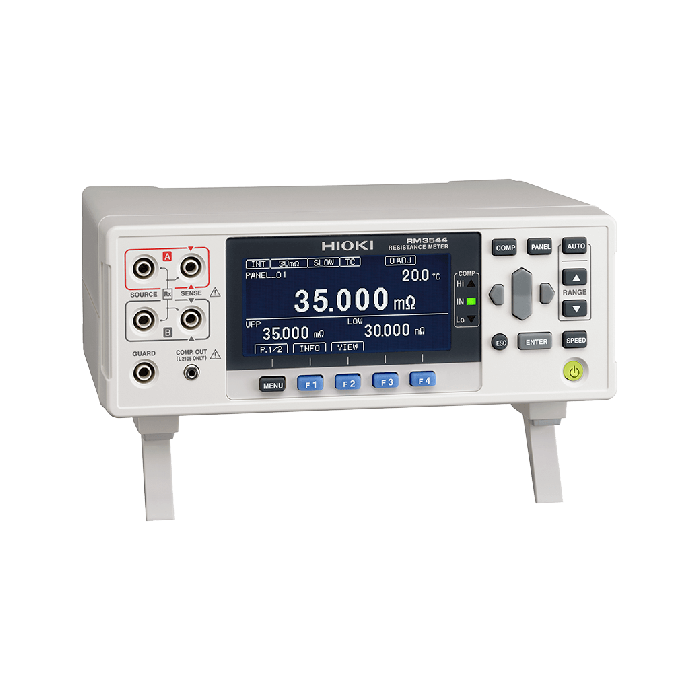

Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3544 is easy-to-use resistance testers suitable for use on either manual or automated production lines for measuring the winding resistance of motors and transformers as well as the contact resistance of power relays, switches, and connectors.
Key Features
- 0.02% basic accuracy, 1 μΩ max. resolution, 300 mA max. measurable current
- Measure from 0.000 mΩ (testing current 300 mA) to 3.5 MΩ
- Probe for guard jack use and increased measurement current yield an instrument that’s more resistant to noise
- Optional LED COMPARATOR ATTACHMENT and high-volume judgment tones combine to ensure PASS/FAIL judgments are communicated reliably in the noisy environment of the production floor
- EXT I/O interface with NPN/PNP support can accommodate a variety of automated production lines (-01 model)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | 100 to 240 V AC, 50/60 Hz, Rated power consumption: 15 VA |
| Included Accessories | [RM3544] Power cord ×1, Clip type lead L2101 ×1, Instruction manual ×1, Spare fuse ×1 [RM3544-01] Power cord ×1, Clip type lead L2101 ×1, Male EXT. I/O connector ×1, Instruction manual ×1, Application disc ×1, USB cable (A-to-B type) ×1, Spare fuse ×1 |
| Interfaces | [Only RM3544-01] Select from RS-232C, Printer (RS-232C), or USB Remote function, communications monitor function, data output function |
| Resistance Measurement Ranges |
30 mΩ (35.000 mΩ display max., 1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display max., 100 Ω resolution), 9 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s. |
| Temperature Measurement Accuracy | -10.0 °C to 99.9°C, accuracy: ±0.5 °C (Temperature Sensor Z2001 and RM3544 combined accuracy) |
| Measurement Time | FAST (50Hz: 21ms, 60Hz: 18ms) / MED (101ms) / SLOW (401ms) |
| Testing Current | [at 30 mΩ range] 300 mA DC to [at 3 MΩ range] 500 nA DC |
| Open-Terminal Voltage | 5.5 V DC max. |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
