Battery Hitester BT3563 - 3 mΩ to 3000 Ω/300 V DC Battery Testers for Production Line Testing of High Voltage Battery Packs and Modules

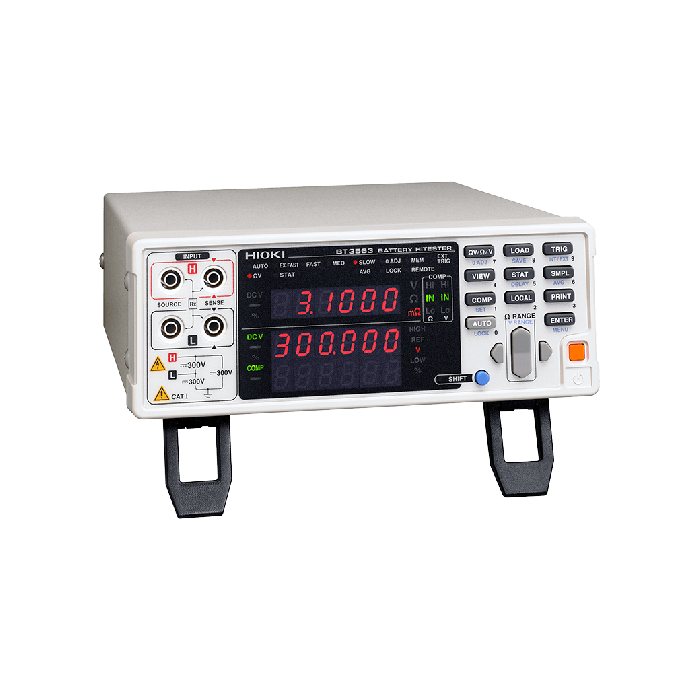

main product photo
Hioki benchtop battery testers support simultaneous high-speed measurement of internal resistance and battery voltage for the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries, and other battery packs for high voltage applications. The BT3563 battery internal resistance tester can measure the voltage and resistance of battery modules, high voltage battery packs, fuel cell stacks and other large batteries up to 300 V.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Measure high-voltage battery packs up to 300V
  • Production line testing of high-voltage battery packs and battery modules
  • Large (low-resistance) cell testing
  • Choice of PC interfaces for full remote operation
Basic Specifications
Max. applied measurement voltage ± 300 V DC rated input voltage
± 300 V DC Max. rated voltage to earth
Resistance measurement ranges 3 mΩ (Max. display 3.1000 mΩ, resolution 0.1 μΩ) to 3000 Ω (Max. display 3100.0 Ω, resolution 100 mΩ), 7 ranges
Accuracy: 30 mΩ to 3000 Ω ranges, ± 0.5% rdg. ± 5 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM)
3 mΩ range, ± 0.5% rdg. ± 10 dgt. (Add ± 30 dgt. for EX.FAST, or ± 10 dgt. for FAST, or ± 5 dgt. for MEDIUM)
Testing source frequency: 1 kHz ± 0.2 Hz, testing current: 100 mA (3 mΩ range) to 10 μA (3000 Ω range)
Open-circuit Voltage: 25 V peak (3/30 mΩ ranges), 7 V peak (300 mΩ range), 4 V peak (3 Ω to 3000 Ω ranges)
Voltage measurement ranges 6 VDC (resolution 10 μV) to 300 VDC (resolution 1 mV), 3 ranges
　 Accuracy: ± 0.01% rdg. ± 3 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM)
Display 31000 full digits (resistance), 600000 full digits (voltage), LED
Sampling rate Four steps, 4 ms (Extra-FAST), 12 ms (FAST), 35 ms (Medium), 150 ms (Slow)
(Typ., sampling time depends on supply frequency settings and function.)
Measurement time Response time + sampling rate, approx. 10 ms for measurements
(Response time depends on reference values and the measurement object.)
Comparator functions Judgment result: Hi/IN/Lo (resistance and voltage judged independently)
Setting: Upper and lower limit, Deviation (%) from reference value
Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results.
Result display, beeper, or external I/O output, Open-collector (35 V, 50 mA DC max.)
Analog output Measured resistance (displayed value, from 0 to 3.1 V DC, -01 suffix models only)
Interfaces External I/O, RS-232C, Printer (RS-232C), GP-IB (-01 suffix models only)
Power supply 100 to 240 VAC, 50/60 Hz, 30 VA max.
Dimensions and mass 215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz)
Accessories Instruction manual ×1, Power cord ×1
Instrument Type Battery Tester
Notes The comparison threshold values depend on the battery manufacturer, type, and capacity, and these must be established by the user. Measurement leads are not included. Purchase the appropriate lead option for your application separately. The male (system side) of the EXT I/O connector is also available. Please inquire with your authorized Hioki distributor or reseller.
