C-0250
C-0250
Marki Microwave

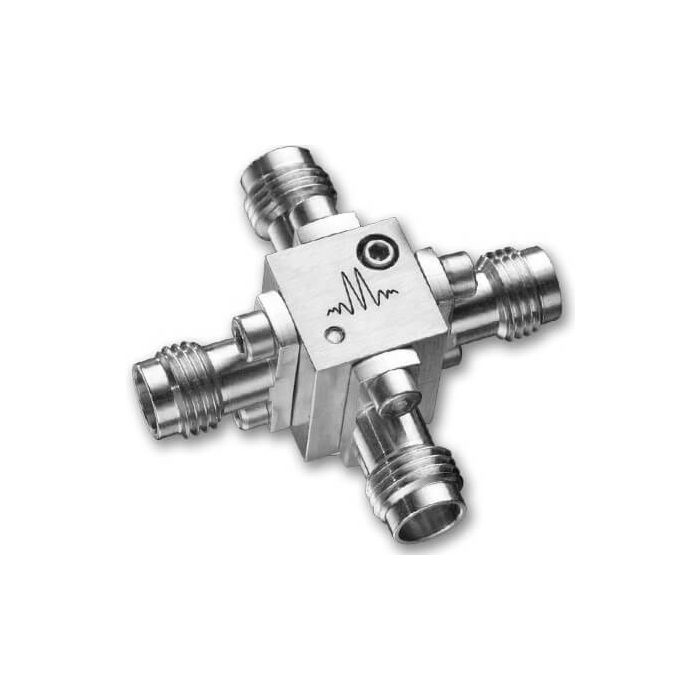

Low Loss Directional Coupler (2 GHz - 50 GHz)
Unique airline construction allows extremely low insertion loss and high power handling in our RF/microwave airline couplers. These single section couplers contain no dielectric, so there are no dielectric losses.
They offer extremely broad frequency response (if the coupling rolloff can be calibrated out by the user) and high directivity.
They are excellent for load-pull testing of amplifiers, power monitoring of transmitted signals, and other high power applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| RoHS | N |
| Key Features |
|
| Directivity (dB) | 15 dB |
| Insertion Loss | 0.7 dB |
| Maximum Frequency | 50 GHz |
| Minimum Frequency | 2 GHz |
| Product Type | |
| VSWR | 1.25 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
