C1806S
C1806S
Focus Microwaves

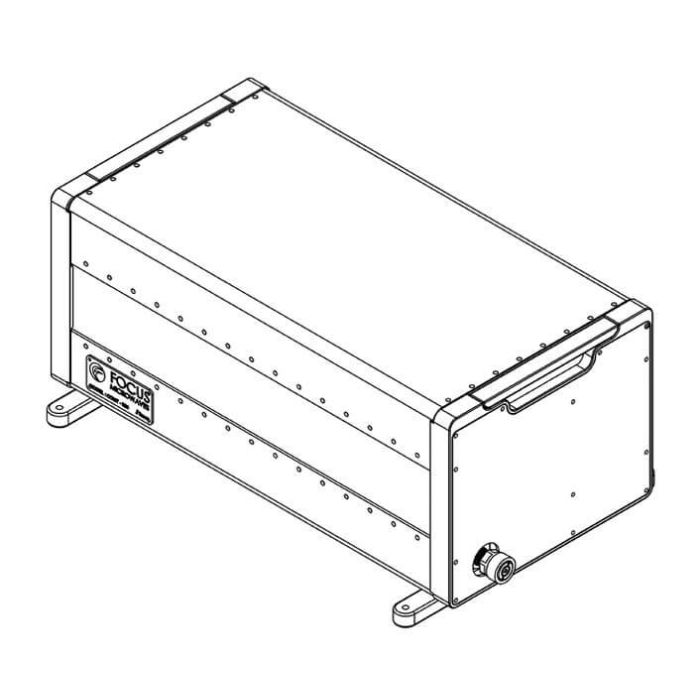

Shielded Fundamental Tuner (0.6 - 18 GHz)
Since 1989 Focus Microwaves manufactures wideband coaxial programmable (slide screw) impedance tuners from 100MHz up to 120GHz. Focus’ fundamental tuners were designed with versatility in mind.
The C (Computer Controlled Microwave Tuner) family of tuners have one to three wideband probes enabling very wideband frequency coverage making it ideal for high power applications as well as wideband noise applications.
The very long lasting RF probes used in the tuner are also designed for optimal tuning accuracy, free of spurious resonances. The combination of multiple probes provide ultra wideband coverage in one single tuner. All Focus tuners are LAN controlled and include on-board impedance synthesis firmware (iTuner).
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 0.6 GHz |
| Maximum Frequency | 18 GHz |
| Maximum Power | 427 W |
| VSWR Min | ≥10:1/20:1 |
| Connectors | N, APC-7 |
| Product Type | Fundamental Tuner |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
