Focus Microwaves

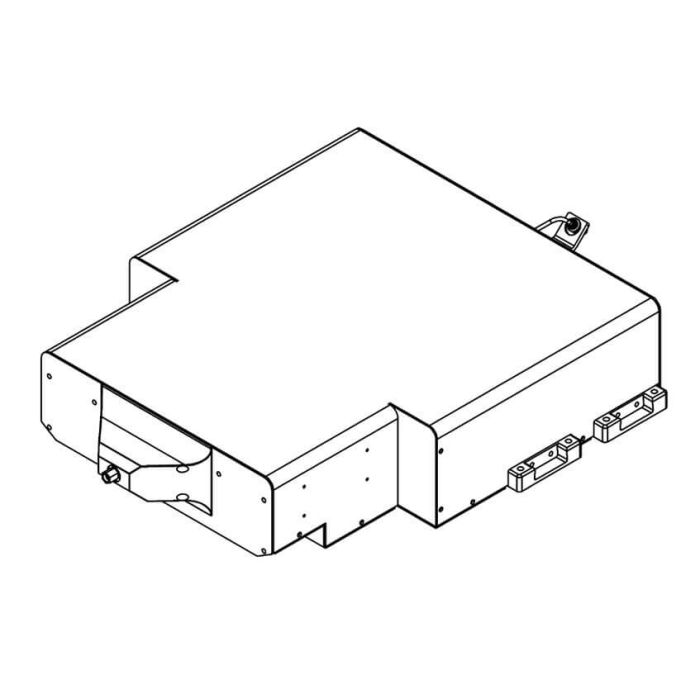

Low-Frquency DELTA Fundamental Tuner (0.7 - 26.5 GHz)
DELTA TUNERS FOR FUNDAMENTAL
ON-WAFER LOAD PULL
Focus Microwaves’ new delta series of electro-mechanical tuners is designed specifically for high frequency on wafer measurements. The tuner’s low profile allows it to be placed within the wafer perimeter and allows for a direct connection between the probe tip and the tuner, eliminating all possible insertion loss between the DUT and the tuner.
This revolutionary new tuner design enables the engineer to achieve optimum tuning range, with a tuner whose footprint and weight has been dramatically reduced.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 0.7 GHz |
| Maximum Frequency | 26.5 GHz |
| Maximum Power | 51 W |
| VSWR Min | ≥10:1/15:1 |
| Connectors | 3.5 mm, 2.92 mm |
| Product Type | Fundamental Tuner |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
