Hummel

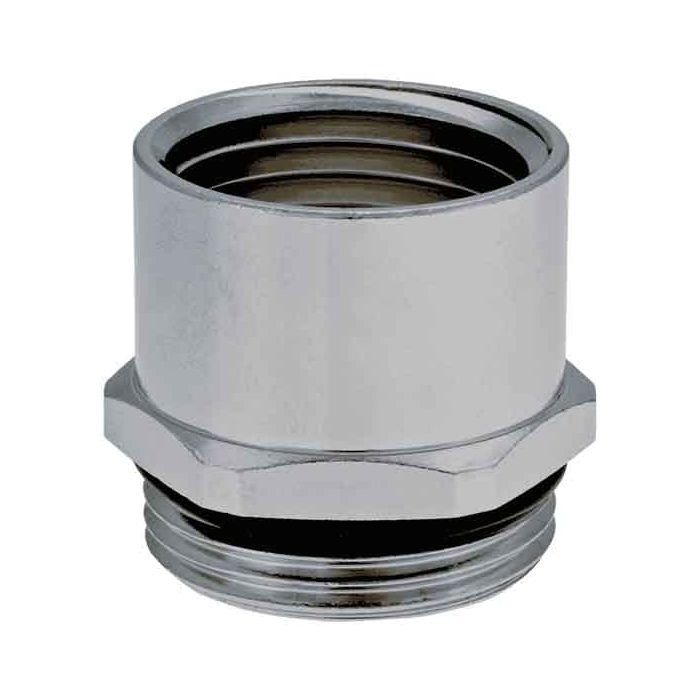

Adapter made of brass
Adapter made of brass from Hummel. Metric. -40°C to +100°C
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1171201250 |
| Manufacturer | Hummel |
| Weight (kg) | 0.0242 |
| Customs tariff number | 74122000 |
| EAN code | 4033878407882 |
| ETIM 7 | EC000938 |
| Packaging Unit | 50 |
| Height (mm) | 17.0000 |
| RoHS | RoHS |
| External thread (AG) | M20 x 1.5 |
| Material seals / O-rings | NBR |
| Material | Nickel-plated brass |
| Thread length (mm) | 6.0000 |
| Internal thread (IG) | NPT 1/2" |
| Tightening torque [Nm] | 8.0000 |
| Wrench size 1 (SW1) [mm] | 24.0000 |
| Wrench size (SW) [mm] | 24.0000 |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
