1.315.3800.70
1.315.3800.70
Hummel

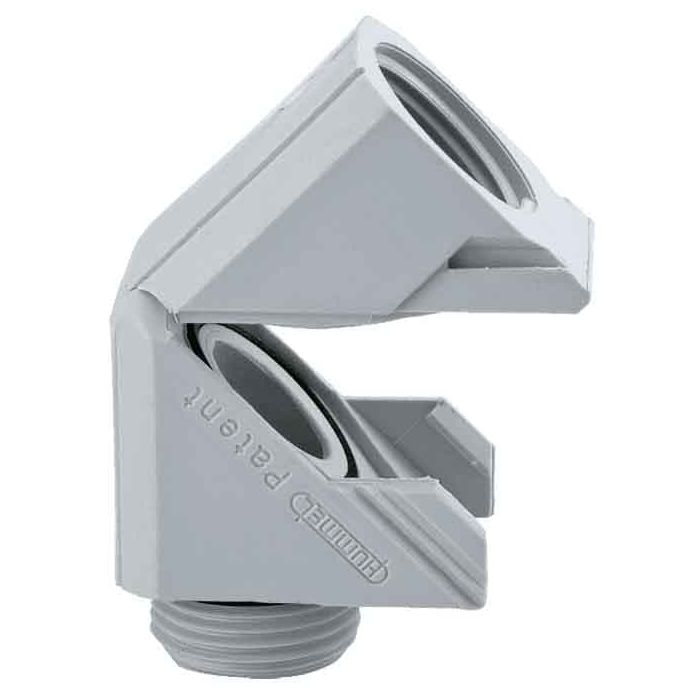

Snap elbow made of polyamide
Snap elbow made of polyamide from Hummel. NPT. Protection class IP 68 - -20°C to +80°C Grey
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1315380070 |
| Manufacturer | Hummel |
| Colour | Grey |
| Length (mm) | 28.5 |
| Weight (kg) | 0.0112 |
| Customs tariff number | 39269097 |
| EAN code | 4033878420706 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 23.0000 |
| RoHS | RoHS |
| External thread (AG) | NPT 3/8" |
| Material seals / O-rings | NBR |
| Protection class | IP 68 |
| Material | Polyamide |
| Thread length (mm) | 15.0000 |
| RAL | 7035.0000 |
| Internal thread (IG) | PG 9 |
| Wrench size 1 (SW1) [mm] | 19.0000 |
| Wrench size (SW) [mm] | 19.0000 |
| Temperature Range | -20°C to +80°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
