CBR16-0012
CBR16-0012
Marki Microwave

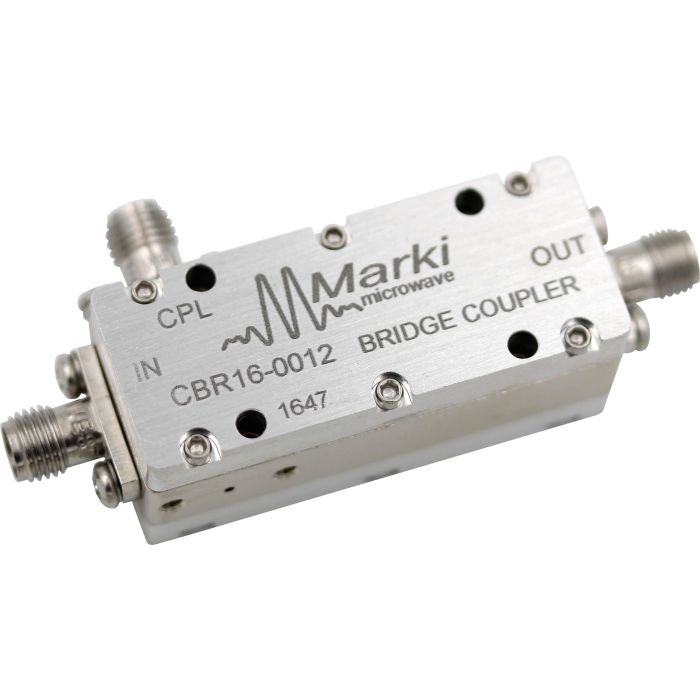

High Directivity Coupler (200kHz - 12 GHz)
The CBR16-0012 offers the broadest bandwidth of any standalone bridge coupler on the market. It provides an extremely high degree of measurement accuracy for forward power measurements, and can also be used to measure VSWR/return loss. The flat coupling ratio, high directivity, and broadband performance to 200 kHz make the CBR16-0012 an excellent ‘black box’ coupler for everyday lab use.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| RoHS | Y |
| Key Features |
|
| Directivity (dB) | 32 dB |
| Maximum Frequency | 12 GHz |
| Minimum Frequency | 200 kHz |
| Product Type | |
| VSWR | 1.25 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
