CA-50

CA-50

Marki Microwave

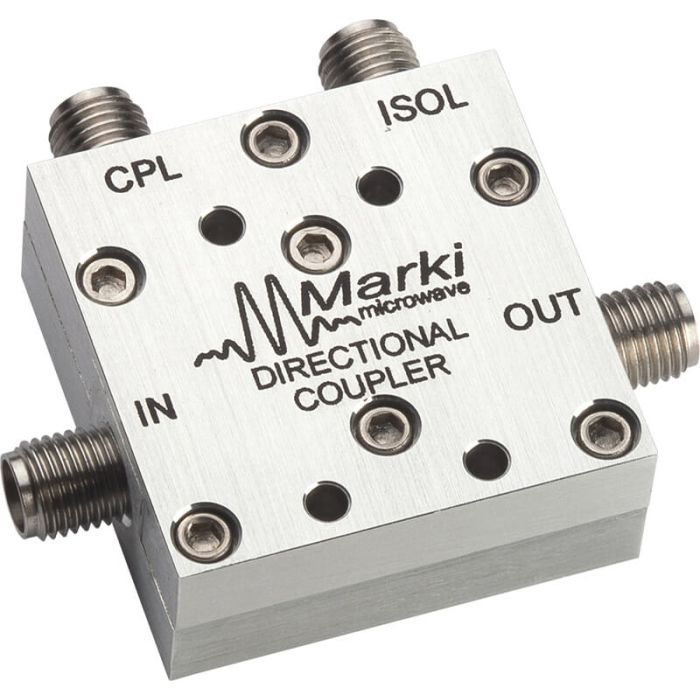

Low Loss Air-Line Directional Coupler (DC - 50 GHz)

The CA-50 is a low loss directional coupler capable of operation to 50 GHz. This coupler features a unique air-line construction that simultaneously enables extremely low loss, minimal return loss, and outstanding directivity throughout the entire frequency range to 50 GHz.

This coupler can be used for low loss and high power applications. The useable operating frequencies extend below 1 GHz for applications where calibration of the frequency response is available.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
RoHS Y
Key Features
  • Low Insertion Loss and VSWR
  • Broadband Performance
  • High Directivity
  • Compact Size and Lightweight
Directivity 24 dB
Insertion Loss 0.5 dB
Maximum Frequency 50 GHz
Minimum Frequency DC
Product Type
VSWR 1.1
More Information
Attribute Value
Data Sheet Click here to view
