C09-0R412
C09-0R412
Marki Microwave

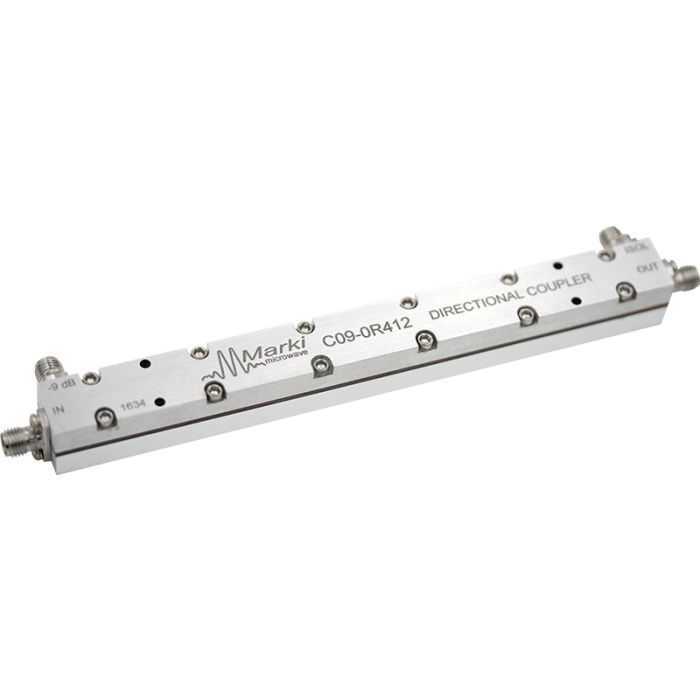

Stripline Directional Coupler (450 MHz - 12 GHz)
The C09-0R412 is a broadband 0.45-12 GHz, 9 dB directional coupler. The multisection tri-plate stripline design exhibits excellent coupling flatness and VSWR at all ports. Custom designs are also available; contact APC for details.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| RoHS | Y |
| Key Features |
|
| Directivity (dB) | 22 dB |
| Amplitude Flatness | ±0.7 dB |
| Maximum Frequency | 12 GHz |
| Minimum Frequency | |
| Product Type | |
| VSWR | 1.15 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
