CD10-0106
CD10-0106
Marki Microwave

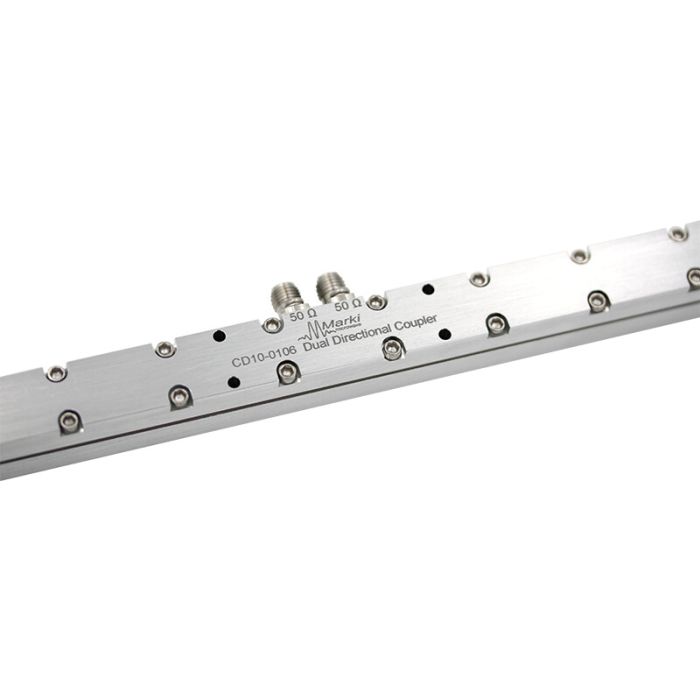

Microwave Dual Directional Coupler (800 MHz - 6.3 GHz)
The CD10-0106 is an ultra high directivity 0.8-6.3 GHz, 10 dB dual directional coupler. The multisection tri-plate stripline design exhibits excellent coupling flatness and VSWR at all ports.
Applications include reflectometry (return loss) measurements, level monitoring, etc. Custom designs are also available, contact APC for details.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| RoHS | Y |
| Key Features |
|
| Directivity (dB) | 25 dB |
| Amplitude Flatness | ±0.6 dB |
| Maximum Frequency | 6.3 GHz |
| Minimum Frequency | |
| Product Type | |
| VSWR | 1.14 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
