Marki Microwave

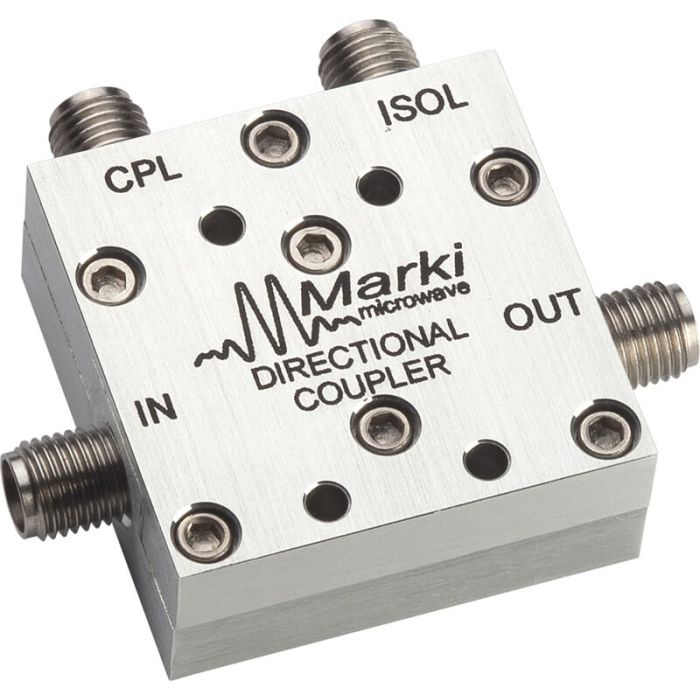

Low Loss Directional Coupler (500 MHz - 12 GHz)
The C17-0R512 is a high power, broadband bidirectional coupler capable of operation to 12 GHz. The multisection stripline design exhibits excellent coupling flatness and VSWR at all ports. This coupler is available with SMA and APC-7 connector option.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| RoHS | Y |
| Key Features |
|
| Directivity (dB) | 20 dB |
| Insertion Loss | 0.65 dB |
| Maximum Frequency | 12 GHz |
| Minimum Frequency | |
| Product Type | |
| VSWR | 1.2 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
