09110012771
09110012771
Harting

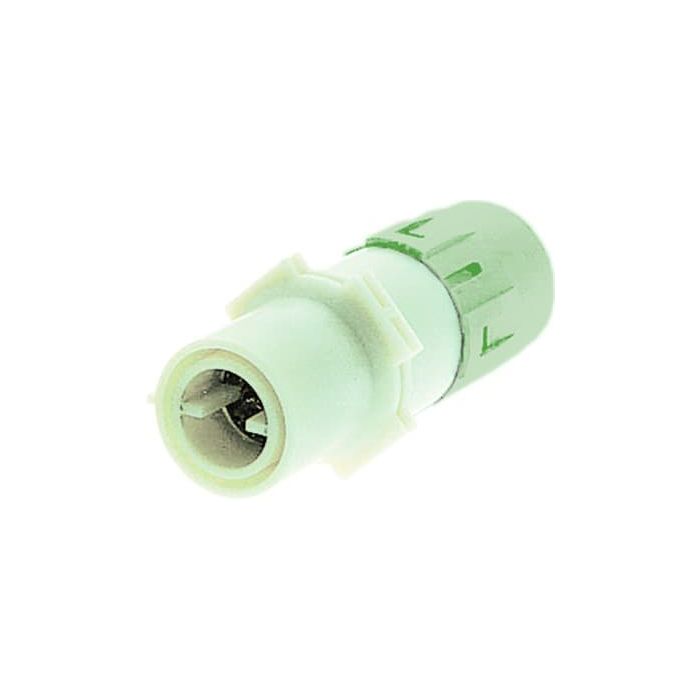

Han 1HC-Bu-Ax 650A, 70-120mm
Inserts, Axial screw termination, Female, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current:650 A, Conductor cross-section: 70 ... 120 mm, Copper alloy, Silver plated
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 424 Han® High Current Connector |
| Product Family | Han HC Female Insert |
| Product Brand Name | 09 11 001 2771 |
| Manufacturer | HARTING |
| Customs tariff number | 85359000 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | RO |
| Manufacturer's Brand | Han® HC Modular |
| Material contact surface | Silver |
| Insertion cycles minimum | 500.0000 |
| Rated voltage (V) | 4000.0000 |
| Contact design | Socket |
| Rated_surge_voltage (V) | 18.0000 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | Axial screw connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 70…120 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 650.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
