CS1030
CS1030
Cleverscope
Differential Probe

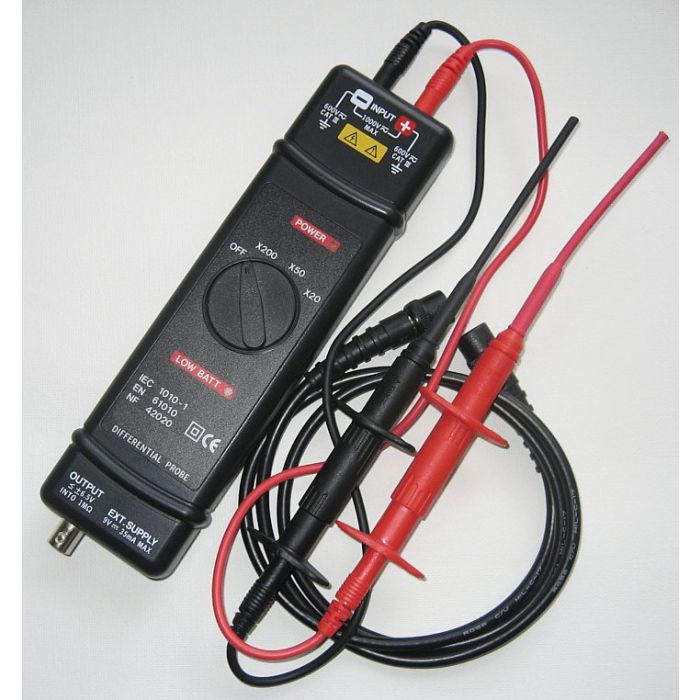

The CS1030 Differential probe is a switchable x20, x50 and x200 25 MHz differential probe for making isolated measurements between any two points in a system. (25 MHz bandwidth, 1300V maximum operating voltage, three ranges x20, x50 and x200. These multipliers are default values in the Control Panel.)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Safety | Meets IEC1010-1 Cat 1. EN61010, UL3111 |
| Power | One internal 9V PP3 battery or external 6-9V DC |
| CMRR | 50/60Hz: >10,000:1 100Hz: >1,000:1 1MHz: >300:1 |
| Output Impedance | 50Ω |
| X20 Attenuation MOhm | 20:1 |
| X20 Attenuation 50Ohm | 40:1 |
| X20 Bandwidth | DC to 15 MHz |
| X20 Working Voltage | 140V |
| X50 Attenuation 1MOhm | 50:1 |
| X50 Attenuation 50Ohm | 100:1 |
| X50 Bandwidth | DC to 25 MHz |
| X50 Working Voltage | 350V |
| X200 Attenuation 1MOhm | 200:1 |
| X200 Attenuation 50Ohm | 400:1 |
| X200 Bandwidth | DC to 25 MHz |
| X200 Working Voltage | 1300V |
| Max Diff Voltage | 1300V (DC +peak AC) |
| Max V to Ground | 1000 V (DC +peak AC). |
| Input Impedance | 4 MΩ 1.2 pF between inputs 2 MΩ 2.3 pF between inputs and ground |
| Noise | 2 mV rms into 50Ω load |
| Cable Length | 1 m |
| Dimensions | 200 x 55 x 30 mm (plastic case) |
| Included Accessories | Carry Bag, Instruction Manual, Large Crocodile Clips, Long Grabber Clips, Test leads, BNC-BNC cable, Power supply |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
