CS1031
CS1031
Cleverscope
Differential Probe

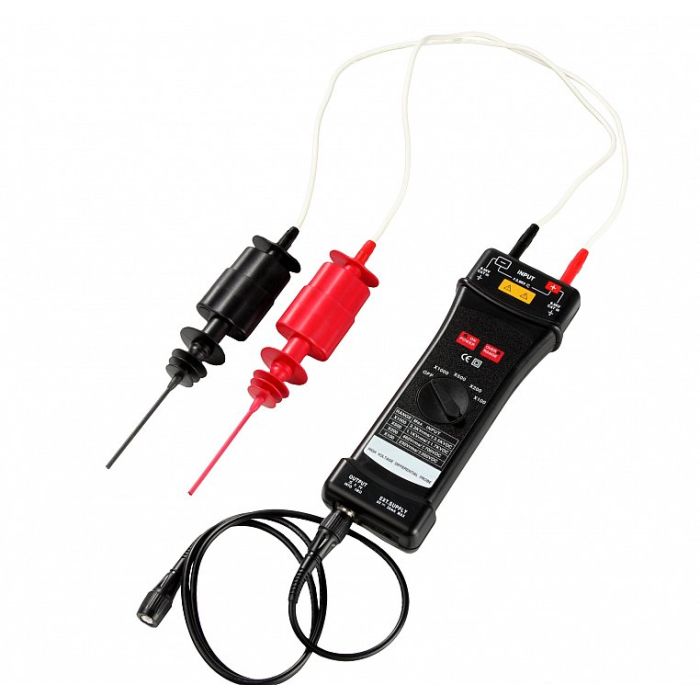

The CS1031 Differential probe is a switchable x100, x200, x500 and x1000 50 MHz differential probe for making isolated measurements between any two points in a system.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Safety | Meets IEC1010 Cat 1. EN61010, UL3111 |
| Power | One internal 9V PP3 battery or external 6-9V DC. |
| CMRR | 50/60Hz: >10,000:1 100Hz: >1,000:1 1MHz: >300:1 |
| Output Impedance | 50Ω |
| X200 Attenuation 1MOhm | 200:1 |
| X200 Attenuation 50Ohm | 400:1 |
| X200 Bandwidth | DC to 50 MHz |
| Max V to Ground | 6500 V (DC +peak AC). |
| X500 Attenuation 1MOhm | 500:1 |
| X500 Attenuation 50Ohm | 1000:1 |
| X500 Bandwidth | DC to 50 MHz |
| X500 Max Operating Voltage | ±3250V (DC +peak AC) |
| X1000 Attenuation 1MOhm | 1000:1 |
| X1000 Attenuation 50Ohm | 2000:1 |
| X1000 Bandwidth | DC to 50 MHz |
| X1000 Max Operating Voltage | ±6500V (DC +peak AC) Max V to Ground |
| X100 Attenuation 1MOhm | 100:1 |
| X100 Attenuation 50Ohm | 200:1 |
| X100 Bandwidth | DC to 25 MHz |
| X100 Max Operating Voltage | ±650V (DC +peak AC) |
| X200 Max Operating Voltage | ±1300V (DC +peak AC) |
| Input Impedance | 4 MΩ 1.2 pF between inputs 2 MΩ 2.3 pF between inputs and ground |
| Noise | <2 mV rms into 50Ω load |
| Cable Length | 1 m |
| Dimensions | 200 x 55 x 30 mm (plastic case) |
| Included Accessories | Carry Bag, Instruction Manual, Large Crocodile Clips, Long Grabber Clips, Test leads, BNC-BNC cable, Power supply |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
