CT1
CT1
Tektronix

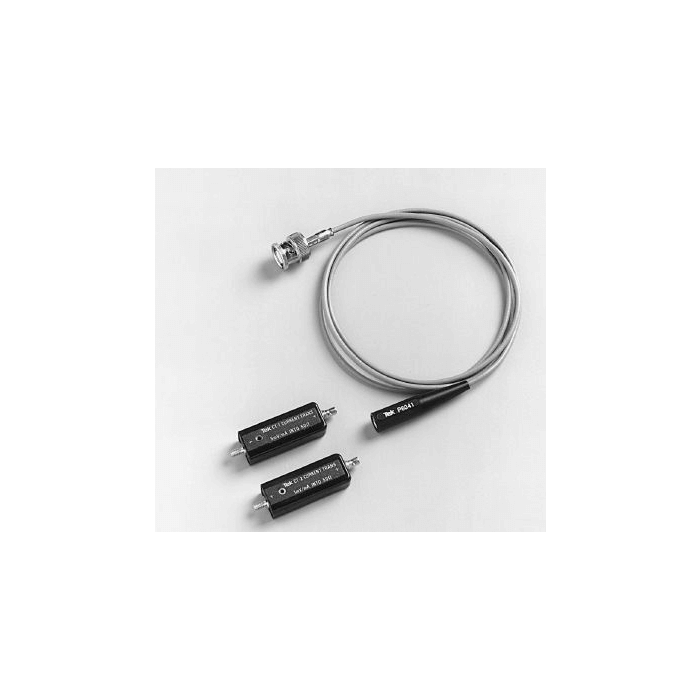

High-frequency Current Probe. Includes: Manual and P6041 Interconnect Cable.
The CT1 Current Probes is designed for permanent or semi-permanent in-circuit installation. The Tektronix CT1 probe consists of a current transformer and an interconnecting cable. The current transformers have a small hole through which a current carrying conductor is passed during circuit assembly. The P6041 Probe Cable provides the connection between the CT1 Current Transformers and a BNC oscilloscope input. A 50 Ω termination is required to terminate the cable when connected to a high-impedance (1 MΩ) oscilloscope input. One probe cable can be used to monitor several current transformers that have been wired into a circuit.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | Current_Probes |
| Product Family | Current Probes |
| Key Features |
|
| Bandwidth | 1 GHz |
| Applications |
|
| Rise Time | < 350 ps |
| Accessory Type |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
