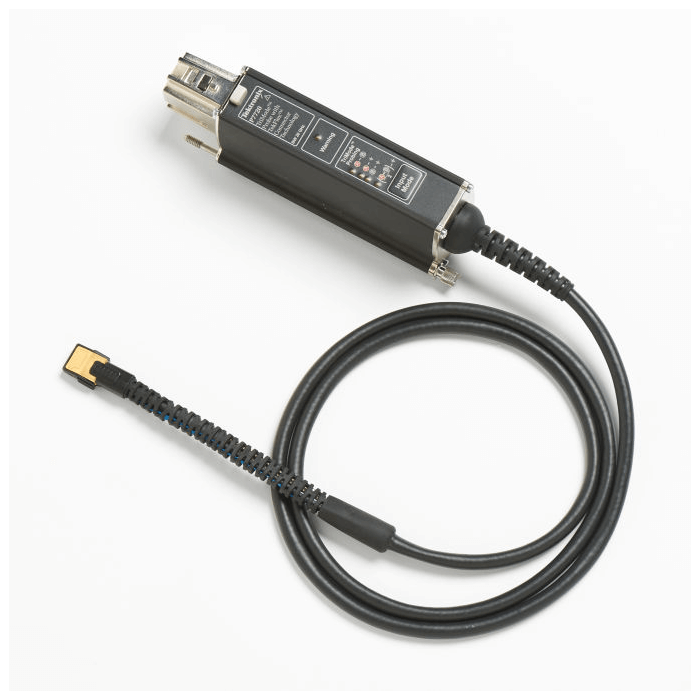

P7508

You can be confident in the signal fidelity of your measurements. The innovative p7508 Tektronix differential architecture, coupled with the superior electrical performance of IBM SiGe technology, provides the bandwidth and fidelity to meet the industry needs of today as well as tomorrow.

One-probe setup makes differential, single ended, and common mode
measurements accurately and definitively.

Tektronix is a known leader when it comes to signal fidelity and signal acquisition. Building on their history of market-leading innovations in probing, Tektronix invented a revolutionary probing architecture called “TriMode™ Probing” that defines the next-generation industry benchmark for usability and signal fidelity. This architecture changes the rules of probing and allows you to work more effectively and efficiently. By enabling unique functionality, the p7508 TriMode™ probes allow you to switch between differential, single-ended, and common mode measurements without moving the probe from its connection points.

Improved productivity is achieved by reducing setup time. One setup can be used to make the three different types of measurements all with the press of a button. The TriMode™ Probe architecture for the p7508 probe continues the Tektronix tradition of high-bandwidth and low-DUT loading while providing improved connectivity and value.

The Tektronix p7508 Series Probe architecture provides:

• Highest bandwidth available – 25 GHz
• Excellent step response
• Low-DUT loading
• High CMRR
• Differential, single-ended, or common mode measurements using one probe
