Hioki's pass-through type AC/DC current sensors can be connected directly to Hioki Power Analyzers and Memory HiCorders. Also, it can be connected to Power Meters, Oscilloscopes, DMMs, etc. by using an optional sensor unit.

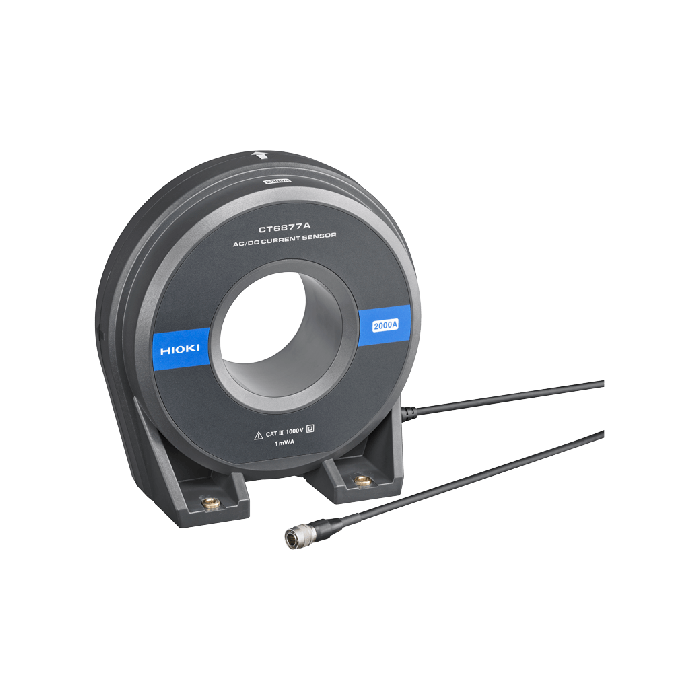

The CT6877A has a frequency bandwidth of DC to 1 MHz and a rated current of 2000 A. It can easily handle large current measurements of electric vehicles such as EVs and HEVs. The CT6877A is also used for R&D, quality evaluation, manufacturing, and maintenance in markets such as wireless charging systems, inverter motors for industrial equipment, power conditioners for PV, and quick charging facilities for EVs.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Measures high-current up to 2000 A for EV, HEV and other electric vehicles
Improved noise resistance performance through a stronger shield lets you accurately measure current buried in noise
High accuracy measurement realized through flat frequency characteristics and CMRR performance
More enhanced environmental resistance performance than ever before lets you measure in -40 to 85°C situations
Superior frequency characteristics of DC to 1 MHz (amplitude)
Meet a wide range of applications from measuring battery charge/discharge to the secondary side of inverters in photovoltaic power generation and fuel cell evaluation, etc.
Monitor waveforms when paired with oscilloscopes or Memory HiCorders and Sensor Unit
Basic Specifications
Rated current
2000 A AC/DC
Max. allowable input
Within the derating range, (within the specified range up to ±3200 Apeak )
