R15IB3S-MLA3HB
R15IB3S-MLA3HB
Winmate

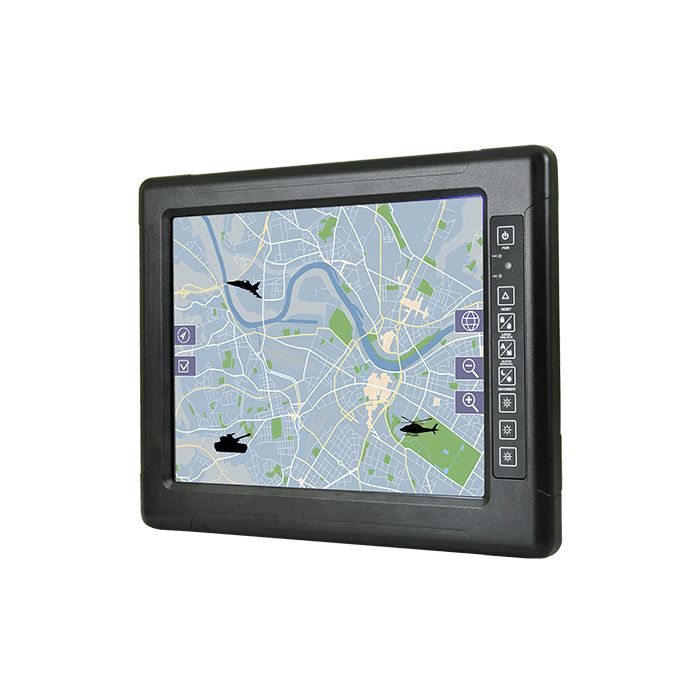

15" Intel® Celeron® N2930 G-WIN Military Panel PC
To meet the military and defense regulatory requirements, all Winmate's Military Console Rack Panel PCs are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standard.
Selected models support the NVIS MIL-STD-3009 night vision. Winmate performs in-house reliability test to ensure optimal performance in harsh military environments.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Size | 15.0 inches |
| Power Rating |
|
| Operating System |
Windows 7 Embedded Systems (Optional)
Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional) |
| Resolution | 1024x768 |
| Processor | Intel® Celeron® N2930 (2M Cache, up to 2.16 GHz) |
| Storage |
1 x mSATA SSD 64GB.
mSATA SSD up to 512GB. (Optional) |
| Security | TPM 2.0 |
| Contrast Ratio | 2500:1 |
| Shock | Operating:30g for 18ms |
| Vibration | Operating: 1.60/1.96/2.18 g rms for XYZ / 5-500Hz |
| LAN | 2 x RJ-45 |
| Mounting | VESA Mount |
| Certifications | CE, FCC |
| Serial Port |
1 x RS-232(Default)/422/485
1 x RS-232 (Optional) |
| USB |
1 x USB2.0
1 x USB3.0 |
| Cooling system | Fanless Design |
| Enclosure | Metal Housing with Aluminum Bezel |
| Video | 1 x HDMI (Optional) |
| Ethernet Controller | 2 x Intel® Ethernet Controller I210-AT |
| Button |
8 key:
|
| MIL-STD 810F/G |
|
| MIL-STD 461E/F |
|
| Operating Humidity | 10% to 95% RH |
| Touch / Glass |
|
| View Angles | 88,88,88,88 |
| Panel Brightness | 1000 nits |
| Accessories |
|
| Storage Temperature | -30°C~70°C |
| Operating Temperature | -20°C~60°C |
| Memory |
1 x SO-DIMM, DDR3L 1600 MHz, 4GB
8GB (Optional) |
| Dimensions | 398 x 308 x 58 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
