R17IH3S-MLA1-88
R17IH3S-MLA1-88
Winmate

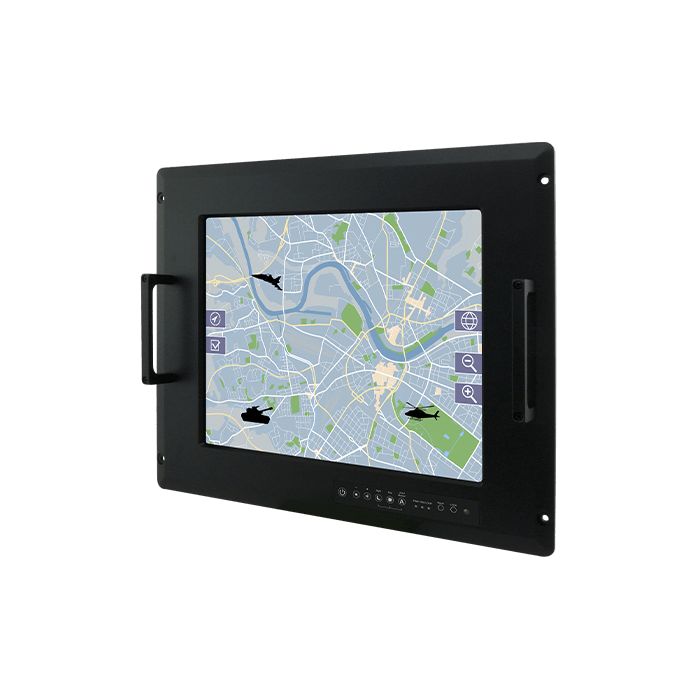

17" Intel® Core™ i7 Military Console Rack Panel PC
To meet the military and defense regulatory requirements, all Winmate's Military Console Rack Panel PCs are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standard.
Selected models support the NVIS MIL-STD-3009 night vision. Winmate performs in-house reliability test to ensure optimal performance in harsh military environments.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Size | 17.0 inches |
| Power Rating |
|
| Operating System |
Windows 7 Embedded Systems (Optional)
Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional) |
| Resolution | 1280x1024 |
| Processor | Intel® Core™ i7-4650U (4M Cache, up to 3.30 GHz) |
| Storage |
1 x mSATA SSD 64GB
mSATA SSD up to 512GB (Optional) 1 x SATA III for 2.5" HDD (Optional) |
| Security | TPM 1.2 |
| Contrast Ratio | 1000:1 |
| LAN | 1 x LAN (MIL-DTL-38999/3) |
| Mounting | VESA Mount/ Rack Mount |
| Certifications | CE, FCC |
| Serial Port |
1 x RS-232 (MIL-DTL-38999/3)
1 x RS-232 (Optional) |
| USB | 1 x USB 2.0 A Type (MIL-DTL-38999/3) |
| Cooling system | Fanless Design |
| Enclosure | Metal Housing with Aluminum Bezel |
| Video | 1 x VGA (MIL-DTL-38999/3) |
| Ethernet Controller |
|
| Button |
8 Key OSD Control Pad:
|
| MIL-STD 810F/G |
|
| MIL-STD 461E/F |
|
| Operating Humidity | 10% to 95% RH |
| Touch / Glass |
|
| View Angles | 85,85,80,80 |
| Panel Brightness | 350 nits |
| Accessories |
|
| Storage Temperature | -30°C~70°C |
| Operating Temperature | -20°C~60°C |
| Memory |
1 x SO-DIMM, DDR3L 1600 MHz, 4GB
8GB (Optional) Wide Temperature (Optional) |
| Dimensions | 482 x 354 x 80 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
