DLT-V73
DLT-V73
Advantech

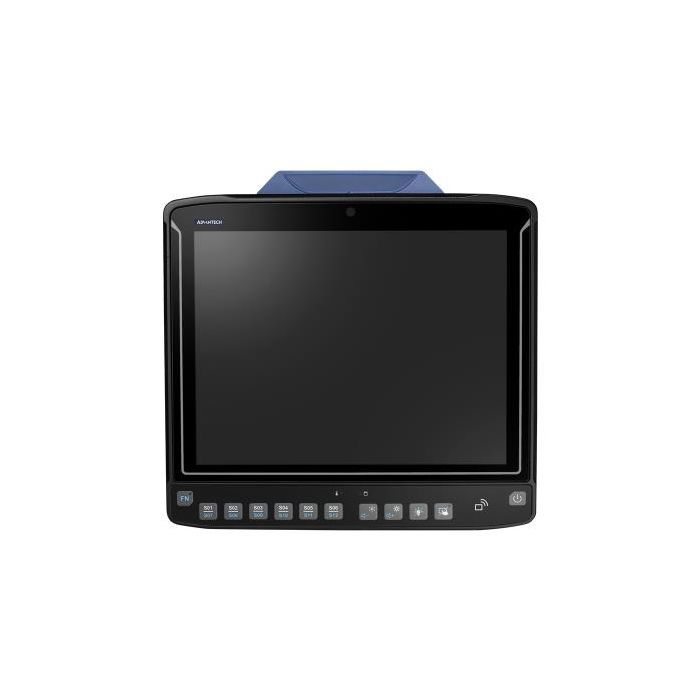

Rugged x86-Based Vehicle-Mounted Terminal
Advantech's DLT-V73 series is an x86-based industrial-grade vehicle-mounted terminal (VMT) designed for the most demanding applications to provide maximum system uptime. Its slim, compact design fits into the smallest vehicle cabinets, minimising obstructions to road visibility and improving driving safety, and it is built to withstand extreme industrial environments whether hot and humid or cold and dry. Supporting both Windows and Linux, it is an ideal VMT for warehouse management, port management, heavy-duty operations, and industrial manufacturing. An integrated Wi-Fi 6/6E WLAN kit offers reliable wireless connectivity, while the scratch-resistant, optically bonded touchscreen ensures easy data input and gloved operation.
Key Features:
- 10.4"/12.1" color TFT XGA display
- Intel® Core™ i5-1145GRE quad-core, 1.5 GHz, 16 GB RAM or Intel® Celeron® 6305E dual-core, 1.8 GHz, 8 GB RAM
- IK08-certified touchscreen for impact tolerance and abrasion resistance
- Full IP66 rating for protection from water and dust ingress
- 5M3 shock and vibration resistance verified
- Wide operating temperature range (-30 ~ 50°C) to withstand extreme environments
- Optional uninterruptible power supply via battery pack (up to 20 minutes of operation)
- Supports Windows and Linux; certified with SOTI, StayLinked, and Navis N4 software
- Supports Advantech DeviceOn software for remote device management
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Memory |
16 GB LPDDR4X (Core i5) |
| CAN | 1 x CAN bus (CAN2.0 / J1939 / CAN FD) — via optional AddOn module |
| USB | 2 x USB-A 3.2 Gen 1, 1 x USB-C 3.2 Gen 2, 1 x Service USB-C 3.2 Gen 2 |
| iModule (Optional) |
AddOn Module (optional; one module at a time): |
| Serial Ports | 1 x COM RS-232: 5 VDC / 12 VDC / RI (switchable) |
| TPM (Optional) | TPM 2.0 |
| Ethernet | 1 x LAN (10/100/1000/2500 Mbit/s), 1 x LAN (10/100/1000 Mbit/s) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
