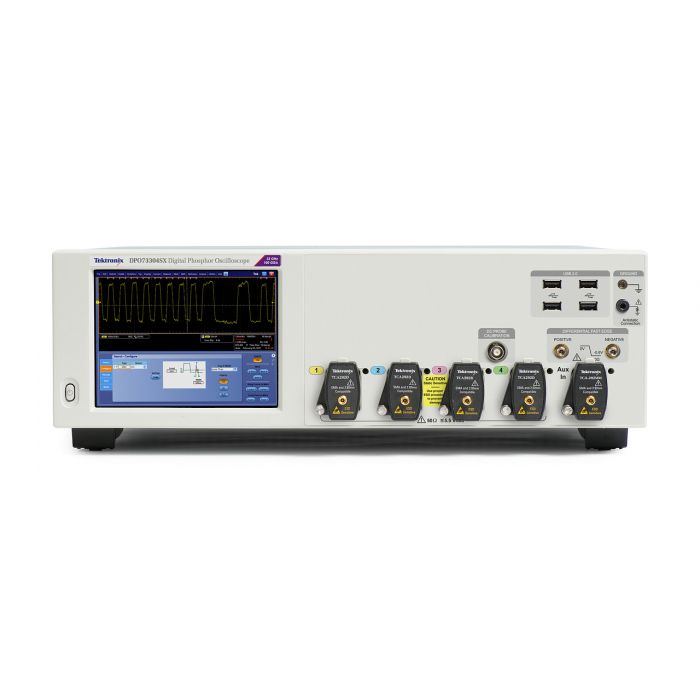

23 GHz Digital Phosphor Oscilloscope; 4 Ch, 23GHz, 50GS/s or 2 Ch, 23GHz, 100GS/s

DPO70000SX provides ultra-high bandwidth real time signal acquisition and analysis up to 70 GHz analogue bandwidth. The patented Asynchronous Time Interleaving (ATI) architecture provides the lowest noise and highest fidelity for real time signal acquisition.

  • Superior signal fidelity and excellent signal-to-noise ratio
  • Stable and precise multi-channel timing for most accurate analysis
  • Compact instrument package with flexibility for future expansion and simple reconfiguration
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

More Information
Attribute Value
Manufacturer Product Family DPO70000SX ATI Performance Oscilloscope
Key Features
  • 13 GHz, 16 GHz, 23 GHz, or 33 GHz analogue bandwidth
  • 100 GS/s, 10 ps/Sample real-time sample rate
  • Low noise, 70 GHz real time signal capture using patented ATI architecture
  • Compact 5 ¼" (3U) instrument package for the most versatile multi-channel systems
  • Precise, scalable performance using UltraSync multi-unit time synchronization bus
  • Highest trigger performance with >25 GHz Edge trigger bandwidth, unique Envelope trigger
  • 14.1 Gbps hardware serial trigger - Assures triggering on the first instance of a specified 8b/10b, 64b/66b, or generic NRZ pattern to allow isolation of pattern-dependent effects
  • Bit error detector - Implemented within the trigger system, this feature provides simple bit error measurement against a defined pattern file, with no missed bits
Sample Rate 100 GS/s , 50 GS/s
Record Length 62.5 M - 1 G points
Bandwidth 23 GHz
Channels 4
Series DPO70000SX ATI
More Information
Attribute Value
Applications
  • Coherent optical modulation analysis
  • Research and defense data acquisition and analysis
  • 100G/400G datacom system debug
  • PCIe debugging and compliance testing
  • High-speed serial communications debugging and compliance testing
  • PCIe, USB, Thunderbolt, HDMI, DisplayPort, and more
More Information
Attribute Value
Data Sheet Click here to view
