DPO7OE2

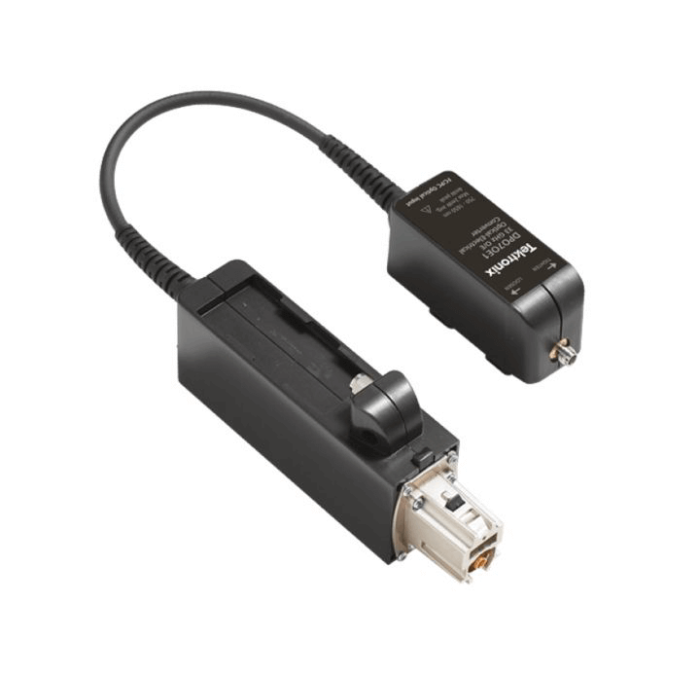

The Tektronix DPO7OE2 Optical probe can be used as Optical Reference Receiver (ORR) for high-speed serial data signals (using selectable Bessel-Thomson ORR filters) or as a conventional O/E converter for general wide-bandwidth optical signal acquisition. The DPO7OE2 is compatible with DPO/MSO70000 C/DX/SX models. Connect to TekConnect channels for up to 33 GHz electrical bandwidth.

Optical signal analysis

The DPO7OE2 optical probe enables deep analysis of PAM4-O and PAM2 (NRZ) signalling using Tektronix's industry-leading DPOJET Jitter and Eye Analysis and PAM4 Analysis software. DPOJET supports traditional optical measurements. These measurements include extinction ratio, eye high, eye low, eye crossing, and optical modulation amplitude.

Versatile configurations

The versatile design of the DPO7OE Series optical probe is compatible with either a DPO70000SX oscilloscope's ATI channel or channels with the TekConnect interface. This versatility makes the DPO7OE Series optical probe suitable for use with all DPO70000SX, MSO/DPO70000DX, and MSO/DPO70000C series oscilloscopes.

Industry-leading PAM4 signalling analysis

The PAM4-O software supports analysis of PAM4 optical signals with clock recovery, error detection, and IEEE and OIF-CEI standard-specific measurements, e.g. TDECQ.
