DSH-400H
DSH-400H
ETS-Lindgren

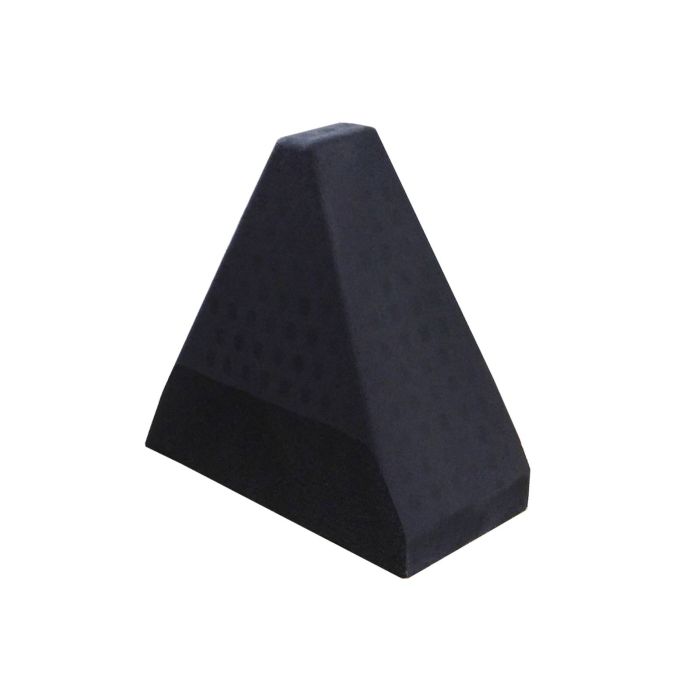

DuraSorb Polystyrene Hybrid Absorber
Compact, Precise Absorber for Chamber Testing Needs
DuraSorb™ DSH-400H is the latest evolution of ETS‑Lindgren’s low profile, hybrid anechoic absorber technology combining the advantages of proven FerroSorb™ performance with the physical properties of our PS Series absorbers.
The DSH-400H provides a smooth transition from free space impedance to the lossy ferrite tile base. As a result of its optimized design, high performance is guaranteed, both at lower frequency bands and frequencies above 1 GHz. The absorption levels make DuraSorb ideal for testing to MIL-STD-461 and CISPR 25 standards.
Key Features:
- Frequency Range: 30 MHz to > 40 GHz
- For MIL-STD-461 and CISPR 25
- Durable Construction, Precision Installation Design
- Non-hygroscopic, Fire Resistant
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Dimensions | 45.6 cm (18.0 in) x 60.0 cm (23.6 in) x 60.0 cm (23.6 in) (H x W x D) |
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 30 MHz |
| Standards | MIL-STD 461, CISPR 25 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
