EMC-20PCL
EMC-20PCL
ETS-Lindgren
EMC Anechoic Absorber

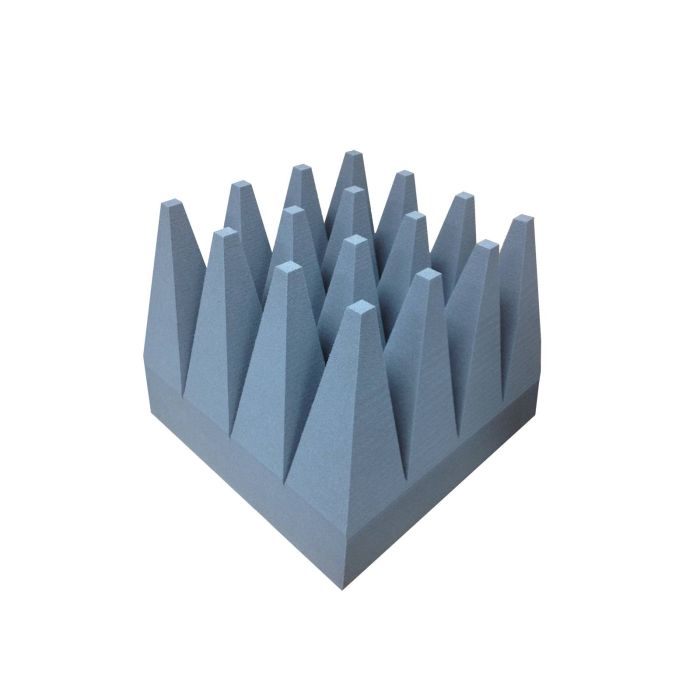

Ultra Broadband EMC Anechoic Absorber
ETS-Lindgren’s EMC-20PCL is an ultra broadband absorber which has been optimized for EMC applications. ETS-Lindgren manufactures EMC-20PCL from high quality, low density polyurethane foam.
A double immersion process evenly impregnates the foam with a proprietary conductive carbon formula. This process optimizes absorber performance and provides an extra degree of protection against water and fire damage.
Key Features:
- Frequency Range: 80 MHz to 40 GHz
- Designed for MIL-STD-461D/E/F, and RTCA-DO-160 Testing
- Reduced Profile with Blunt Absorber Tips
- Non-Hygroscopic Substrate
- 0.5 Watt/in2 or 775 Watt/m2 Power Handling
- 90°C Maximum Service Temperature
- Fire Retardant
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Dimensions | 61.0 cm x 61.0 cm x 50.8 cm (24.02 in x 24.02 in x 20.00 in) |
| Weight | 4.6 kg (10.14 lb) |
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 80 MHz |
| Standards |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
