DSOS254A
DSOS254A
Keysight Technologies

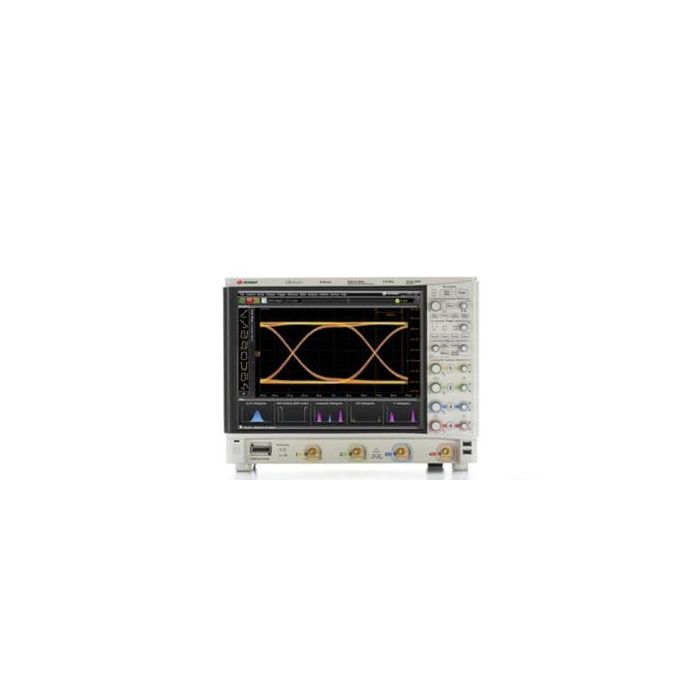

Oscilloscope - Infiniium S Series 2.5 GHz 4 channel
The DSOS254A S-Series oscilloscopes have 2.5 GHz of memory, a 15” XGA capacitive touch screen, and a 10-bit analog-to-digital converter.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form | Digital Storage |
| Bandwidth | 2.5 GHz |
| Channels | 4 |
| Whats Included | Four N2873A 500-MHz passive probes. Probe accessory pouch. Keysight I/O libraries suite. Localized power cord, front panel cover. 8 GHz BNC calibration cable. Keyboard and mouse. User guide and programmers guide ship on oscilloscope drive. Service guide available on Keysight.com |
| ADC Bits | 10 bits |
| Max Memory Depth | 800 Mpts |
| Max Sample Rate | 20 GSa/s |
| Bandwidth Upgrades | Available |
| Special Triggers | InfiniiScan Trigger, A-B HW Trigger, A-B HW Trigger |
| Range | Infiniium |
| Key Features | 2.5 GHz bandwidth (upgradable). 4 analog channels. Achieve up to 16 bits of vertical resolution with our advanced system architecture. Capture a longer signal trace with 20 GSa/s max sample rate and 100 Mpts/channel of standard memory. Get superior signal integrity with an average system ENOB of 8.1 bits at full bandwidthGain increased usability with the multi-touch supported 15 inch capacitive touch screen and solid state drive for fast boot and reliabilityImprove your testing with a wide range of protocol, compliance, and analysis software |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
