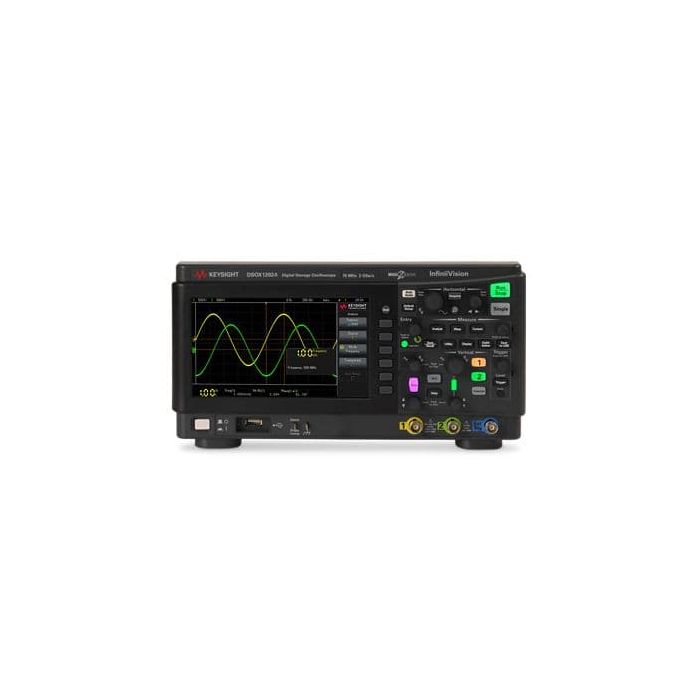

DSOX1202A

DSOX1202A

Keysight Technologies

InfiniiVision 1000 X-Series Oscilloscope, 2Ch, 70 MHz, upgradeable to 200 MHz

The DSOX1202A oscilloscope provides 70, 100, or 200 MHz of bandwidth on 2 Analog channels
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Form Digital Storage
Series 1000 X-Series
Bandwidth 70/100/200 MHz
Channels 2
Whats Included Standard 3-year warranty. (90 days for unserialized accessories). 5-year calibration period with certificate provided. Standard secure eraseTwo N2140A 200 MHz 10:1/1:1 switchable passive probesBuilt-in help in multiple languagesInterface language support GUI: English, Simplified Chinese, Traditional Chinese, Japanese, Korean, German, French, Spanish, Russian, Portuguese, Thai, Polish, Italian, Czech, and Turkish. Localized power cord
ADC Bits 8 bits
Max Memory Depth 2M points
Max Sample Rate 2 GSa/s
Bandwidth Upgrades Available
Display Size 7 inch
Special Triggers edge, pulse width, pulse width, video, video, pattern/state, pattern/state, rise/fall time, rise/fall time, serial, serial (I2C, SPI, UART/RS232/422/485, CAN, LIN)
Waveform Update Rate 200,000 waveforms/sec
Protocol Trigger & Decodes I2C, SPI, UART/RS232/422/485, CAN, LIN
Range InfiniiVision
More Information
Attribute Value
Data Sheet Click here to view
