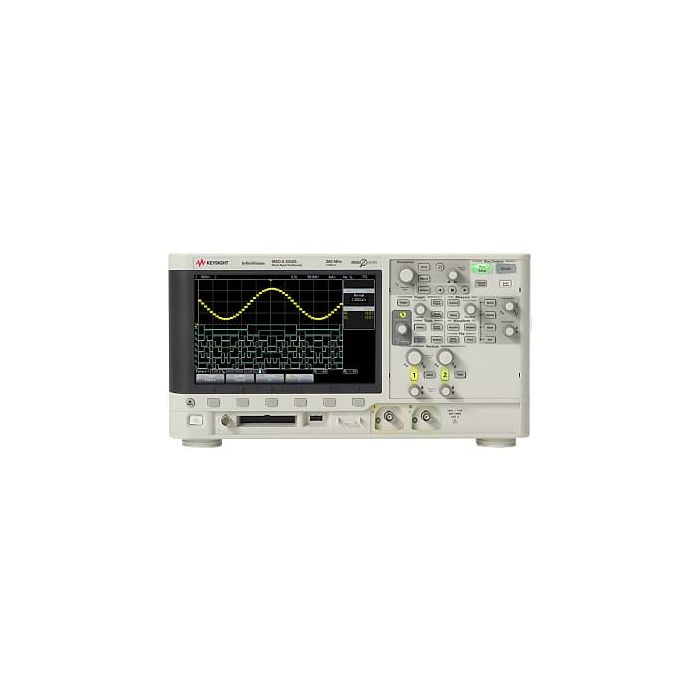

DSOX2002A
DSOX2002A
Keysight Technologies
70MHz Oscilloscope with 2 Analogue Channels
Sometimes you need a basic oscilloscope with a little more functionality — features like advanced waveform math, higher updates rates, or mixed-signal capabilities. All of this is available in the InfiniiVision 2000 X-Series to enable you to perform deeper analysis in an entry-level oscilloscope.
Leading Technology in a value-priced Oscilloscope – the DSOX2002A delivers 70 MHz of bandwidth,100 kpts memory and 2 analogue channels. Functionality rich, yet low on cost, Keysight's DSOX2002A is an oscilloscope that doesn't compromise on quality. Each model has measurement and standard software analysis capability that rivals oscilloscopes 3x the price.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form | Digital Storage |
| Series | 2000 X-Series |
| Bandwidth | 70 MHz |
| Channels | 2 |
| Whats Included |
|
| ADC Bits | 8 bits |
| Max Memory Depth | 1 Mpts |
| Max Sample Rate | 2 GSa/s |
| Bandwidth Upgrades | Available |
| Display Size | 8.5-inch WVGA display |
| Special Triggers |
|
| Waveform Update Rate | 200,000 wfms/s |
| Built In Instruments (Optional) | Digital Channels, Digital Channels, 20 MHz Func Gen, 20 MHz Func Gen, 5-digit Counter, 5-digit Counter, 3-digit DVM, 3-digit DVM |
| Protocol Trigger & Decodes | Optional&&I²C, SPI, UART and CAN, LIN (optional) |
| Range | InfiniiVision |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
