DSOX3014G
DSOX3014G
Keysight Technologies

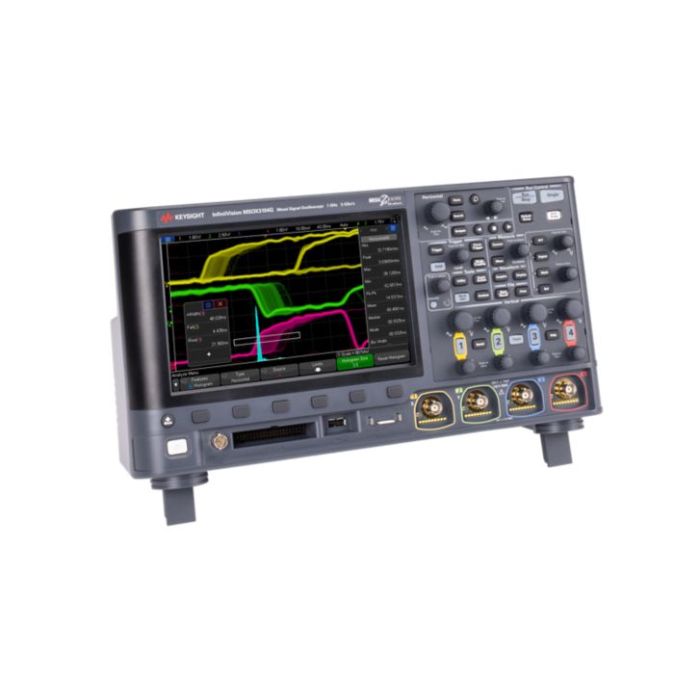

InfiniiVision 3000G X‑Series 100MHz Oscilloscope, 4 Analogue Channels
The Best in Usability Deserves the Best Features - Meet the new generation of Keysight’s industry-leading InfiniiVision X-Series Oscilloscopes. The Keysight InfiniiVision X-Series offers high-end performance in a compact form factor, with bandwidth models ranging from 100MHz up to an immersive 1GHz.
The DSOX3014G 100 MHz oscilloscope provides 4 analogue channels, 4 Mpts memory, 1,000,000 waveforms/sec update rate, zone touch trigger with an 8.5-in capacitive touch screen, and standard embedded software with waveform and measurement histograms.
Whats Included
- Embedded Software Package (D3000GENB)
- PathWave BenchVue Oscilloscope Software (BV004B)
- Waveform and measurement histograms
- Integrated instruments: oscilloscope (with LAN / VGA connectivity module), protocol analyzer, frequency response analyzer (Bode plots), 20 MHz arbitrary waveform generator, 3-digit voltmeter, and 8-digital counter and totalizer
- N2843A passive probe: 500 MHz, 10:1 attenuation (1 per channel)
- Factory warranty 3-year warranty (90 days for unserialized accessories such as passive probes)
- KeysightCare technical support
- Calibration Certificate of calibration, 3-year calibration interval
- Secure erase
- Multi-language interface and help: English, Chinese (simplified), Chinese (traditional), Czech, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Polish, Thai, Turkish
- Documentation CD containing localized user’s guide, service guide, and programmer’s manual
- Localized power cord and overlay
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form | Digital Storage |
| Range | InfiniiVision |
| Series | 3000G X-Series |
| Bandwidth | 100 MHz |
| ADC Bits | 8 bits |
| Max Memory Depth | 4 Mpts |
| Max Sample Rate | 5 GSa/s |
| Bandwidth Upgrades | Available |
| Display Size | 8.5-in capacitive touch screen |
| Special Triggers |
|
| Waveform Update Rate | 1,000,000 wfms/s |
| Channels | 4 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
