DSR 400 Series

DSR 400 Series

AE Techron

Aviation AC and DC Power Test System

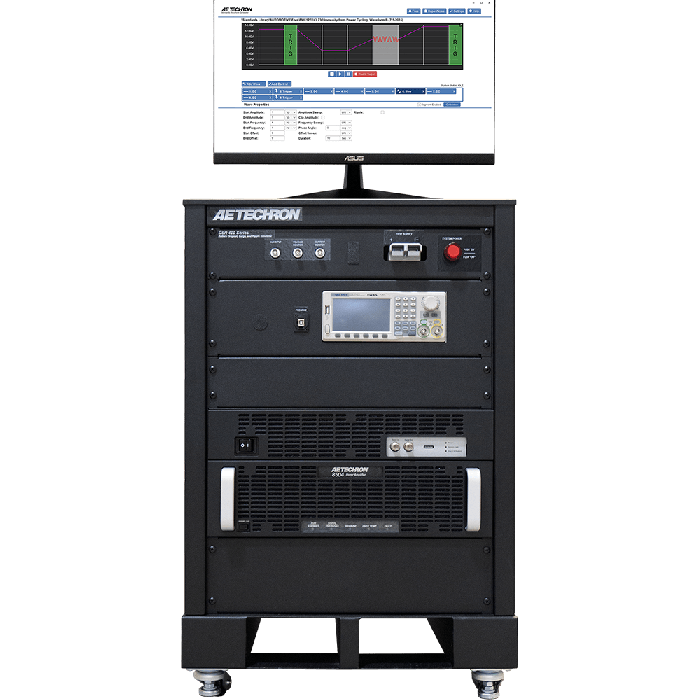

AE Techron’s DSR 400 Series systems provide complete, single-box solutions for immunity testing. This includes a simple-to-use yet powerful standards waveform generator, an industry-standard arbitrary waveform generator, plus an industry-leading power supply technology. It comes with an extensive library of tests for many automotive and aviation standards.

All models of the DSR 400 Series are 4-quadrant, allowing them to source and sink current. This series has power in reserve; each model provides continuous DC power as rated, and is able to provide 5X rated power for in-rush testing up to 200 ms, as is required in DO 160 Section 16. The DSR 400 Series comes with two hours of expert consulting provided by EMC Specialist Patrick G Andre, who will answer any questions you might have about set-up or testing.

System Features:

  • Complete single-box solution for DO 160 Section 16 (115V, 14VDC, 28VDC) and MIL STD 704
  • Includes library of 3,400+ pre-entered Automotive and Aviation Standards’ test routines
  • Operate as a free- standing system using the included monitor, keyboard and mouse, or control via LAN
  • Very easy to modify existing tests or build new test sequences
  • Can function as a controller or node in a larger test system via built-in LAN and GPIO controls
  • Models with 80A or 160A continuous output current available
  • Both the 80 and 160 models allow the choice of either Siglent (model SDG 2042X) or Keysight (model 33511B) arbitrary waveform generator, with the Keysight configuration providing TAA compliance

The DSR 400's drop-out, surge, ripple simulator and AC/DC voltage source provides a complete, single-box solution for DO-160 Section 16 (115V, 14VDC, 28VDC) and MIL STD 704 Sections 1-8. This includes a powerful standards waveform generator, an industry-standard arbitrary waveform generator, and an industry-leading power supply technology.

Key Performance Capabilities:

  • 4-Quadrant – Can source and sink current
  • ±400V – DC supply for 12V to 48V systems and 115V – 240V AC systems
  • 50 kHz Sine – DC ripple tests for many standards
  • 3mΩ DC Source Impedance – Out-performs ISO 7637-2 requirements
  • Supports ground reference and supply offset testing required for ISO 16750-2 Sect. 4.8 and other similar standards
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Voltage Output Range –400V to +400V Max
Output Current Range

DSR 400-80S: 0A to 80A

DSR 400-80K: 0A to 80A

DSR 400-160S: 0A to 160A

DSR 400-160K: 0A to 160A

Operation 4-quadrant, bi-polar operation
Output Rise Time, DC Supply <30 µS
Protection Over/under voltage, over current, over temperature
Physical Characteristics

DSR 400-80S
34.55 H x 22.22 W x 30.29 D in
225 lbs. (102 kg) (approx)

DSR 400-80K
34.55 H x 22.22 W x 30.29 D in
225 lbs. (102 kg) (approx)

DSR 400-160S
325 lbs. (147 kg) (approx)

DSR 400-160K
325 lbs. (147 kg) (approx)

`
Standards Testing List

Boeing-D6-16050-5-C
DO160G Section 16
DO160G Section 18
DO160G Section 19
MIL STD 704F

Waveforms

Sine wave sweep

Ripple (cranking)

DC source

Triangle wave

Square wave

Sawtooth wave

Control Functions

Trigger

Fixed loop

Variable loop

Template playback

GPIO output

LAN output

Peak Current

DSR 400-80S: 150A for 200ms

DSR 400-80K: 150A for 200ms

DSR 400-160S: 300A for 200ms

DSR 400-160K: 300A for 200ms

Bandwidth DC to 50kHz
Source Impedance 3 mΩ + 3 µH
Supply Voltage

DSR 400-80S
Single-phase, 208V ±10%, 30A, 50/60 Hz, 230V/240V ±10%, 30A version available

DSR 400-80K
Single-phase, 208V ±10%, 30A, 50/60 Hz, 230V/240V ±10%, 30A version available

DSR 400-160S
3-phase, 208V ±10%, 30A, 50/60 Hz, 400V ±10%, 30A version available

DSR 400-160K
3-phase, 208V ±10%, 30A, 50/60 Hz, 400V ±10%, 30A version available

Remote Control GPIO, LAN
Cooling Internal forced-air fans
Input

Signal In: BNC connector

LAN: Ethernet connector

Output

DUT Supply +/-: High-current connectors

Signal Output: BNC connector

LAN: Ethernet connector

Operating Environment

Temperature: 10°C to 50°C (50°F to 122°F), Maximum Output Power de-rated above 30°C (86°F)

Humidity: 70% or less, non-condensing

Atmospheric Pressure: 86 kPa (860 mbar) to 106 kPa (1,060 mbar)

Arbitrary Waveform Generator

DSR 400-80S: Siglent (SDG 2042X)

DSR 400-80K: Keysight (33511B)

DSR 400-160S: Siglent (SDG 2042X)

DSR 400-160K: Keysight (33511B)
